High Temperature Heat Resistant Clear 99.99% Pure Fused Quartz Twin Tube with Ozone Free Welding & Bending Services Custom Sizes

Product Description

Key Attributes & Specifications

Type Clear Quartz Pipe
Application Semiconductor, optical, Photovoltaic, Chemical pipeline
Outside Diameter 1mm - 600mm
Product Name Quartz Glass Tube
Brand Name GT Quartz
Model Number GTq0301
Place of Origin Jiangsu, China
Color Clear Transparent
Shape Go both ways quartz tube
Surface Treatment Polished
Material / Purity SiO₂ ≥ 99.99%
Density 2.2 g/cm³
Hardness 6.6 (Mohs scale)
Working Temperature 1100℃
Annealing Point 1180℃
Softening Point 1630℃
Melting Point 1732℃
Ozone Content Ozone Free
Processing Service Bending, Welding, Punching, Polishing
Clear Quartz Pipe Showcase 1

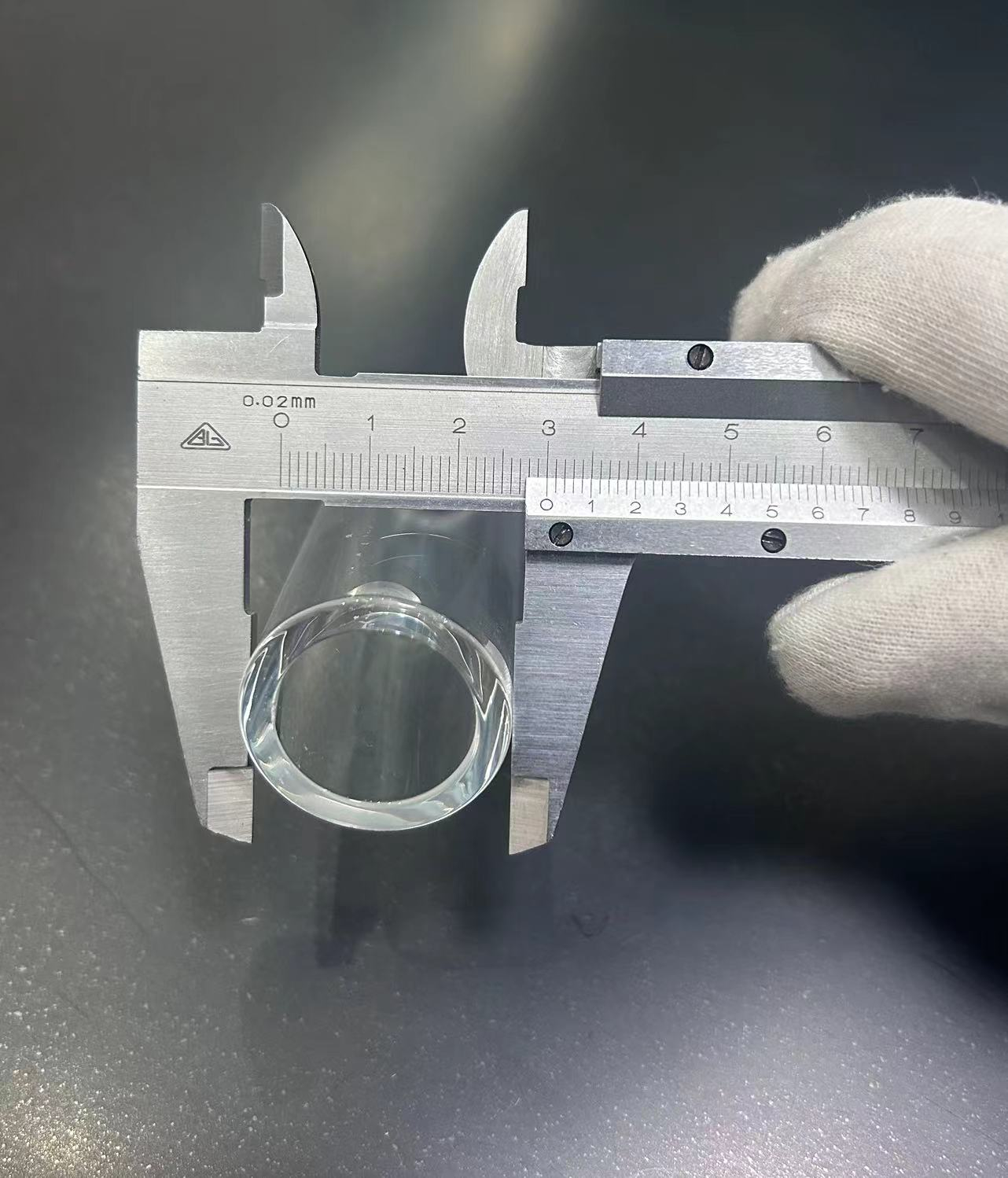

Clear Quartz Pipe Showcase 2

Performance & Material Advantages

Quartz Performance

Quartz Performance

Chemical Properties: Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material.

Thermal Properties: The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of ordinary glass times. The standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.

Guitu Quartz Glass Tube Advantages

We are a manufacturer of Transparent Quartz Tube Furnace. Size & design: Accept customize according to different diameter, thickness, length, or sending your drawing.

  • High purity: SiO₂ > 99.99%
  • Operating Temperature: 1200℃; Soften Temperature: 1730℃
  • Good thermal stability
  • Acid and alkali resistance
  • High transmittance
  • Excellent electrical insulator
Quartz Glass Tube Overview

Customization & Notes

Notes for Purchase and Use

1. There are many specifications of quartz products, so we can't necessarily mark the price, so different prices for different specifications, we can only take a physical picture to buyers as a reference you say the specifications, we give you a quote.

2. For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.

Product Name Guitu Quartz glass tube
Material SiO₂ ≥ 99.99%
Color Transparent or Opaque
Size Options 1. Diameter: 3-600mm
2. Thickness: 0.75-10mm
3. Length: 10-3500mm
4. OEM: All different sizes can be done according to customer's demand.
Quartz Details Top
Product Row Item 1
Product Row Item 2
Product Row Item 3
Quartz Production Display
Quartz Craft 1
Quartz Craft 2
Quartz Craft 3

Custom Fabrication & Industrial Applications

Accept Customized Drawings and Samples

Factory support to figure to sample custom: Quartz handicraft, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc., Semiconductor accessories, Photovoltaic furnace tubes.

Product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection, and other fields.

Specializing in the production of semiconductor quartz square cylinder, High purity quartz cleaning tank, Large bore quartz tube.

Custom Tube Example 1
Custom Tube Example 2
Custom Tube Example 3
Custom Tube Example 4
Fabrication 1
Fabrication 2
Fabrication 3

Packaging, Samples & Lead Time

Sample Availability Maximum order quantity: 10 pieces | Sample price: Pricing by size
Packaging Details Plastic bubble / Polystyrene foam sheet / Carton / Wooden pallet
Quantity (pieces) 1 - 10 > 10
Lead Time (days) 10 To be negotiated
Packaging Standard 1
Packaging Standard 2

Company Profile

Lianyungang Guitu Quartz is a professional quartz glass manufacturer, the main products include:

1. Photovoltaic semiconductor industry: High purity high temperature resistant quartz tube, quartz diffusion tube, TC sleeve, quartz exhaust pipe, pipe diameter change cap, quartz condensation bottle, quartz liquid bottle, quartz door cover, quartz boat frame.

2. Standard & Filter Tubes: Large diameter transparent quartz tube, ozone-free quartz tube, UV filter quartz tube, quartz rod quartz sheet, quartz ring, quartz lead and so on.

3. Optical & Laser: Optical, laser industry for quartz viewing mirror, quartz lens, quartz prism, quartz circular viewing window, square viewing window, ultraviolet quartz lens, infrared quartz lens, sapphire window.

4. Laboratory Apparatus: Quartz beaker, flask, triangle flask, spherical flask, volumetric flask, spherical cold instrument, snake cold instrument, still. High purity water horizontal still, high purity water secondary still, silicon tetrachloride rectification tower, garden bottom evaporation dish, flat bottom evaporation dish, test tube, surface dish, triangle funnel, separating funnel, etc.

Factory Facility Main
Factory Workshop 1
Factory Workshop 2
Factory Workshop 3

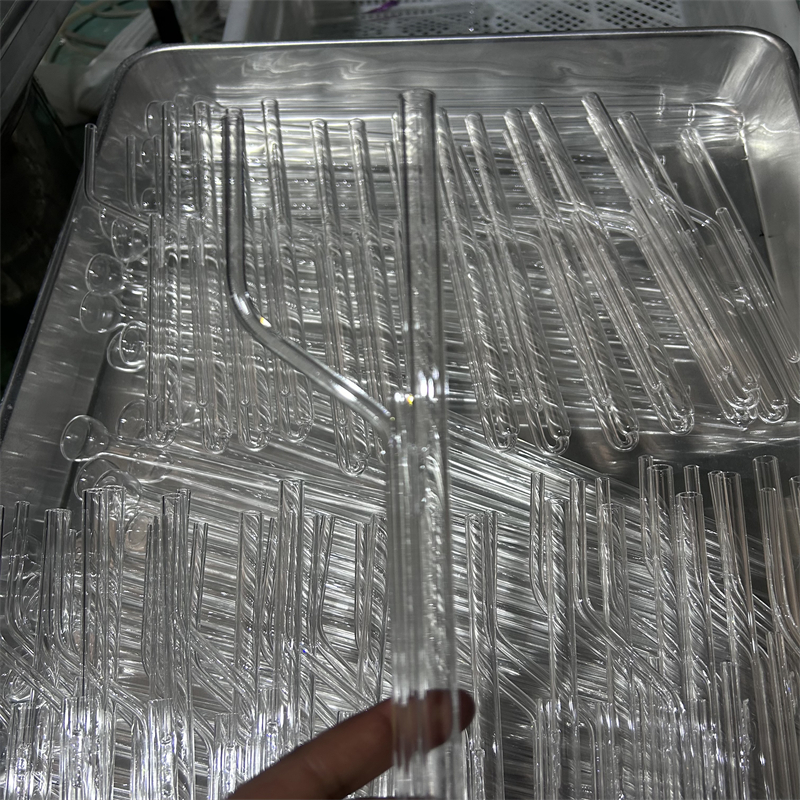

Lab Equipment 1

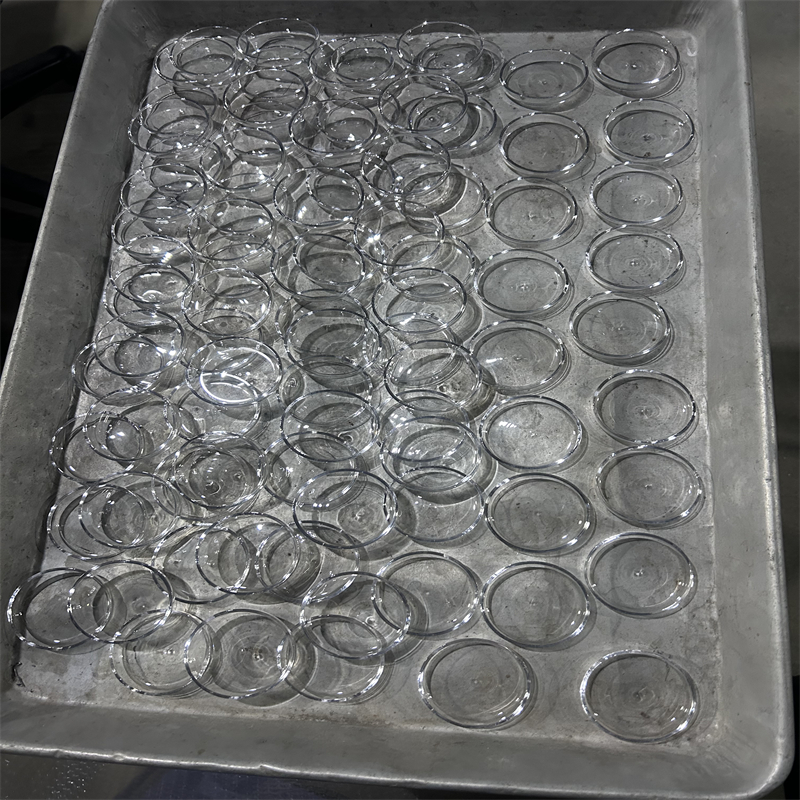

Lab Equipment 2

Frequently Asked Questions

Can I have a sample order?
Yes, we welcome sample order to test and check quality.
What about the delivery time?
Within 15 days after receiving deposit.
Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.
How to proceed an order in your factory?
Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
Can products be customized based on technical drawings?
Yes, size & design accept customization according to different diameter, thickness, length, or according to your technical drawing.
