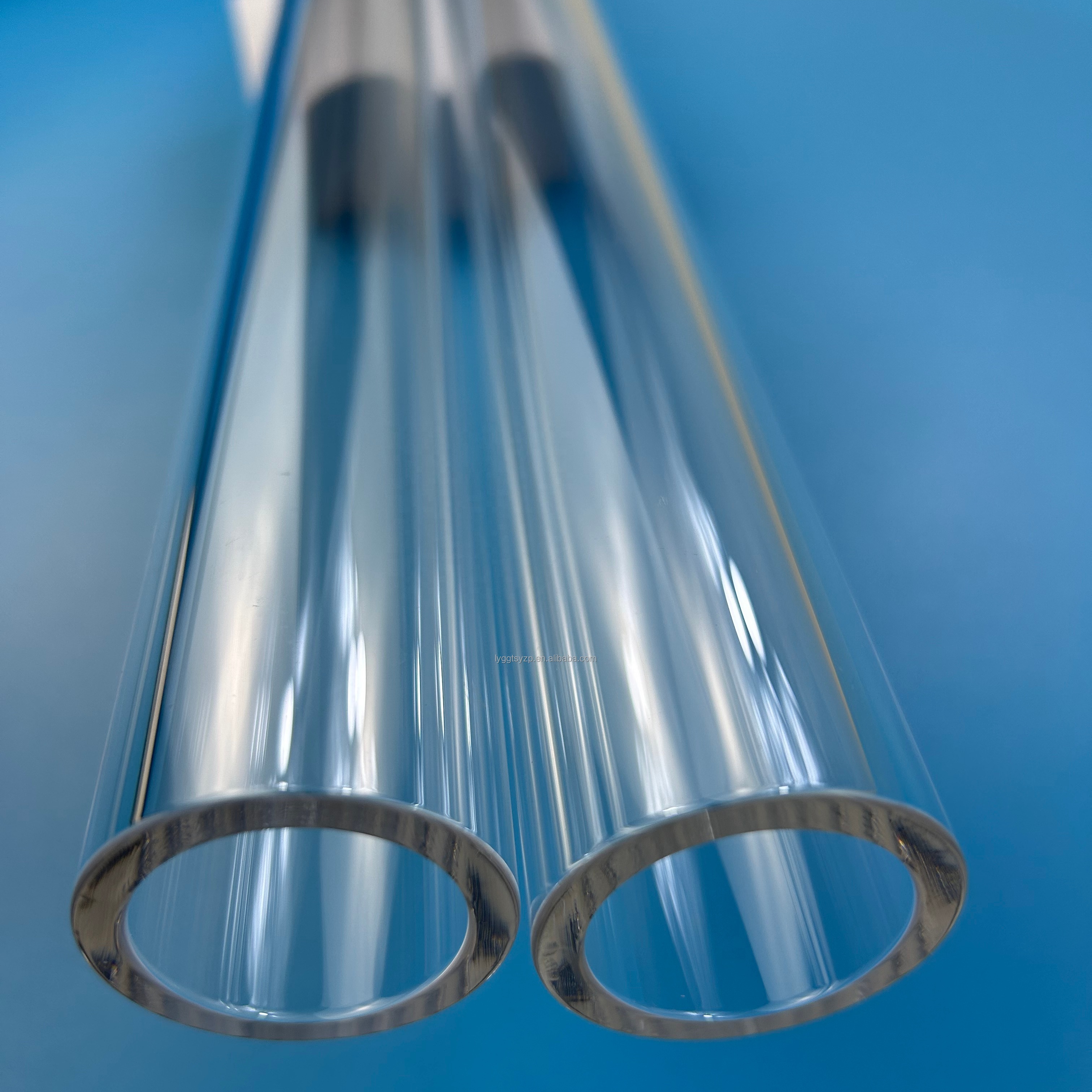

Polished Clear Quartz Twin Tube Ozone Free Heater Chemical Lab Equipment Semiconductor Furnace Tubes Welding Moulding Bending

Product Description

Key Attributes & Performance

Quartz Performance

Quartz tube instrument is a special industrial technology glass made of silica, which is a very good basic material. Quartz glass has a series of excellent physical and chemical properties for electric fire barrels, electric baking stoves, electric heaters, and heating.

Type Clear Quartz Pipe
Application Semiconductor, Optical, Photovoltaic, Chemical pipeline
Outside Diameter 1mm - 600mm
Quartz Performance
Advantage Properties
Advantage Properties

Material Characteristics

Chemical properties: Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material.

Thermal Properties: The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of the ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.

High light transmittance
High light transmittance
In the entire spectrum of ultraviolet to infrared wavelengths have good light transmission, visible light transmission rate of 93% or more in the ultraviolet spectrum region.
Strong plasticity
Strong plasticity
Quartz glass can be processed at its softening temperature into a variety of shapes, so we can customise the product according to your drawings.
Industry-Specific Attributes
Place of Origin Jiangsu, China Brand Name GT Quartz
Color Clear Transparent Surface Treatment Polished
Shape Go both ways quartz tube Ozone Content Ozone Free
Processing Service Bending, Welding, Punching, Polishing Material SIO2
SIO2 Purity 99.99% Density 2.2g/cm3
Melting Point 1732℃ Working Temperature 1200℃ (2192°F)
Strain Point 1120°C (2048°F) Annealing Point 1180℃
Softening Point 1630℃
Application Areas
Customization Available: We can provide customized services according to your industry needs.
Semiconductor etching diffusion stage
Semiconductor etching diffusion stage
Viewing furnace cover
Viewing furnace cover
Infrared heater
Infrared heater
Sterilizing lamp tube
Sterilizing lamp tube
Patio heater tube
Patio heater tube
Water tank heating lamp tube
Water tank heating lamp tube
Product Descriptions & Specifications
Specification Details

Notes for Purchase and Use

1. There are many specifications of quartz products, so we can't necessarily mark the price, so different prices for different specifications, we can only take a physical picture to buyers as a reference you say the specifications, we give you a quote.

2. For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.

Some Products Display
Product Display Header
Quartz Display 1
Quartz Display 2
Quartz Display 3
Product Exhibition 1
Product Exhibition 2
Product Exhibition 3
Product Exhibition 4
Accept Customized Drawings and Samples

Factory support to figure to sample custom, Quartz handicraft, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc, Semiconductor accessories, Photovoltaic furnace tubes.

Product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.

• Specializing in the production of semiconductor quartz square cylinder
• High purity quartz cleaning tank
• Large bore quartz tube
Custom Quartz Tube 1
Custom Quartz Tube 2
Custom Quartz Tube 3
Why Choose Guitu Quartz Glass Tube

We are a manufacturer of Transparent Quartz Tube Furnace

Size & Design: Accept customize according to different diameter, thickness, length or sending your drawing.

Advantage of Quartz Tube Furnace:
1. High purity: SiO₂ > 99.99%
2. Operating Temperature: 1200℃; Soften Temperature: 1730℃
3. Good thermal stability
4. Acid and alkali resistance
5. High transmittance
6. Excellent electrical insulator
Packing & Shipping
Packaging Details Plastic bubble / Polystyrene foam sheet / Carton / Wooden pallet
Pre-shipment quality check
Quality check
Product appearance and size measurement
First layer of packaging
First layer
Pearl cotton or bubble paper
Second layer of protection
Second layer
Foam board laminated to cargo
Outer packing
Outer packing
Packing in cardboard boxes or wooden cases
Logistics Overview
Package Shipping 1
Package Shipping 2
Package Shipping 3
Company Profile & Workshop
Workshop overview 1
Workshop overview 2
Workshop overview 3
Workshop overview 4
Company Plant
Numerical control machine tool
Numerical control machine tool
Connected furnaces
Connected furnaces
Two-end flame polishing
Two-end flame polishing
Small lathe machining
Small lathe machining

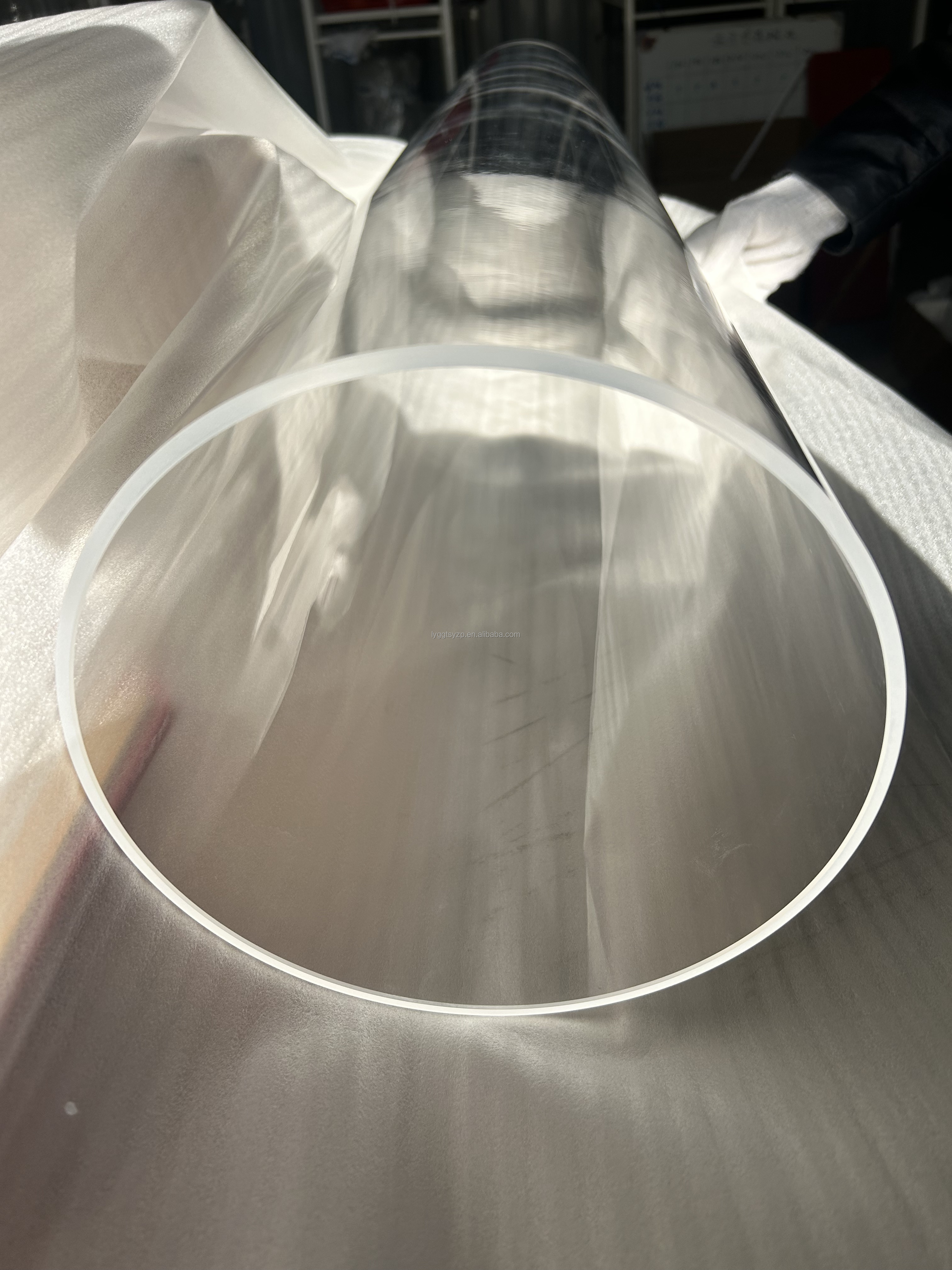

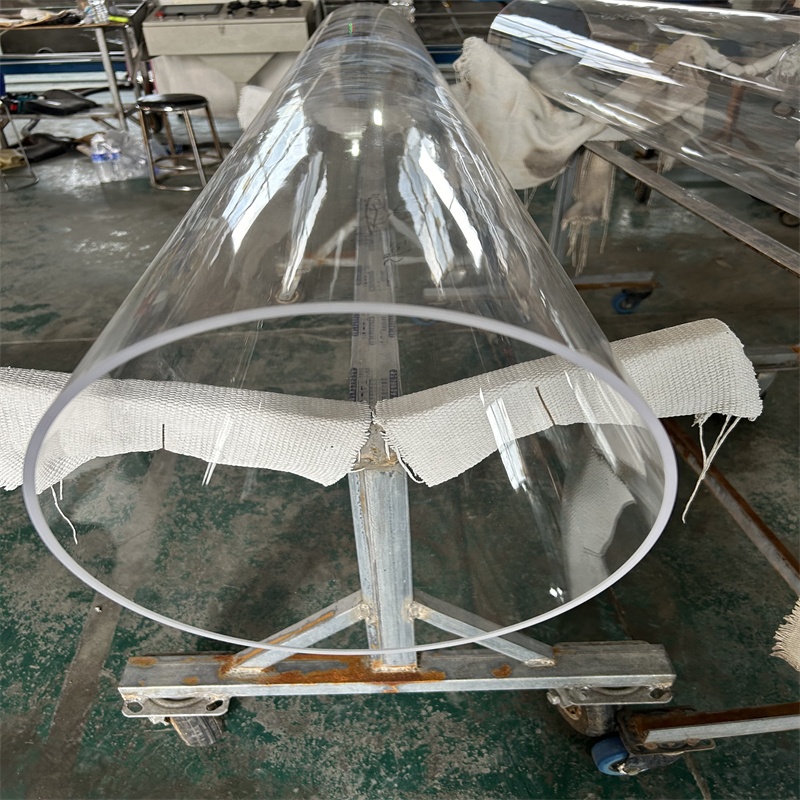

Large size quartz tube
Large size quartz tube
Secondary molding quartz tube warehouse
Quartz tube inventory warehouse
Quartz tube inventory warehouse
Weld
Weld
Secondary forming
Secondary forming

Lianyungang Guitu Quartz is a professional quartz glass manufacturer

1. Photovoltaic semiconductor industry: High purity high temperature resistant quartz tube, quartz diffusion tube, TC sleeve, quartz exhaust pipe, pipe diameter change cap, quartz condensation bottle, quartz liquid bottle, quartz door cover, quartz boat frame.

2. Large diameter transparent quartz tube: Ozone-free quartz tube, UV filter quartz tube, quartz rod quartz sheet, quartz ring, quartz lead and so on.

3. Optical, laser industry: Quartz viewing mirror, quartz lens, quartz prism, quartz circular viewing window, square viewing window, ultraviolet quartz lens, infrared quartz lens, sapphire window.

4. Chemical & Laboratory glassware: Quartz beaker, flask, triangle flask, spherical flask, volumetric flask, spherical cold instrument, snake cold instrument, still. High purity water horizontal still, high purity water secondary still, silicon tetrachloride rectification tower, garden bottom evaporation dish, flat bottom evaporation dish, test tube, surface dish, triangle funnel, separating funnel, etc.

Frequently Asked Questions (FAQ)
Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the delivery time?

A: Within 7 days after receiving deposit.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How to proceed an order in your factory?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q5. How do you ship the goods and how long does it take to arrive?

A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
