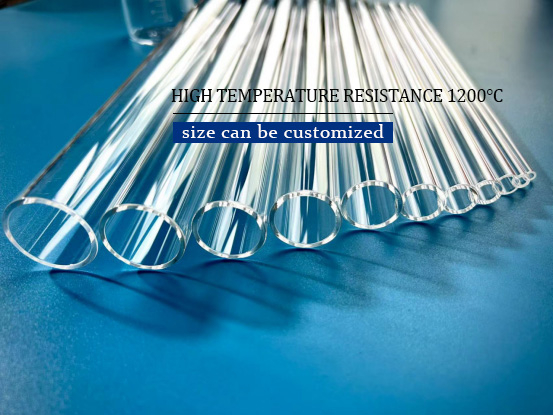

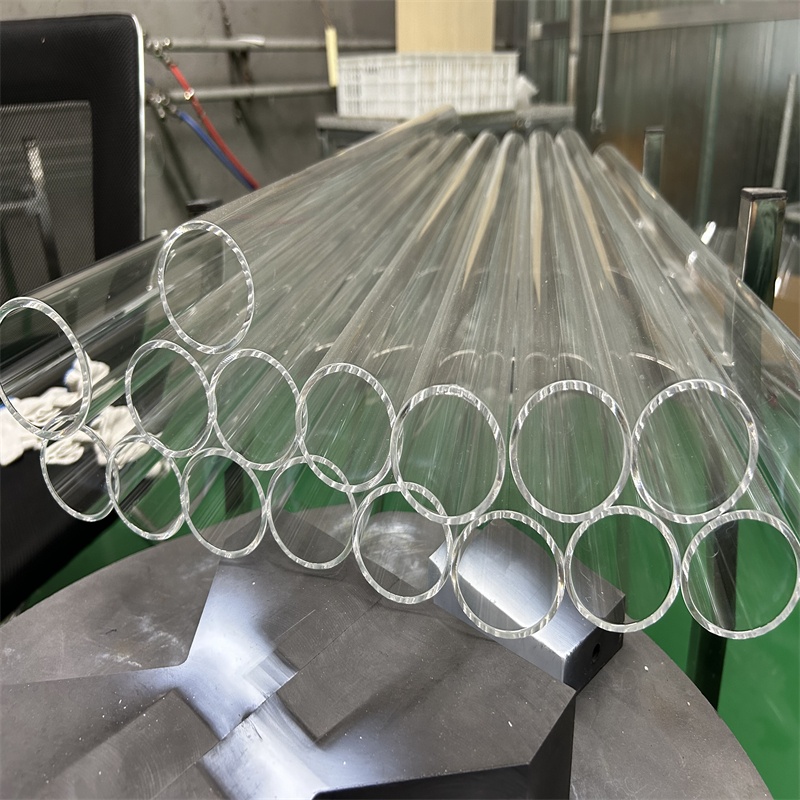

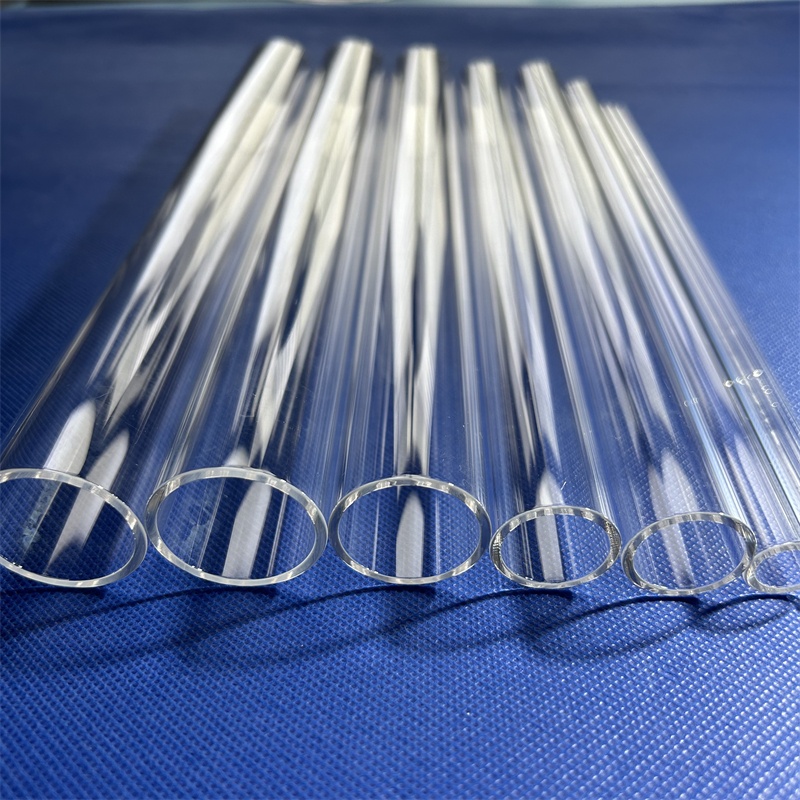

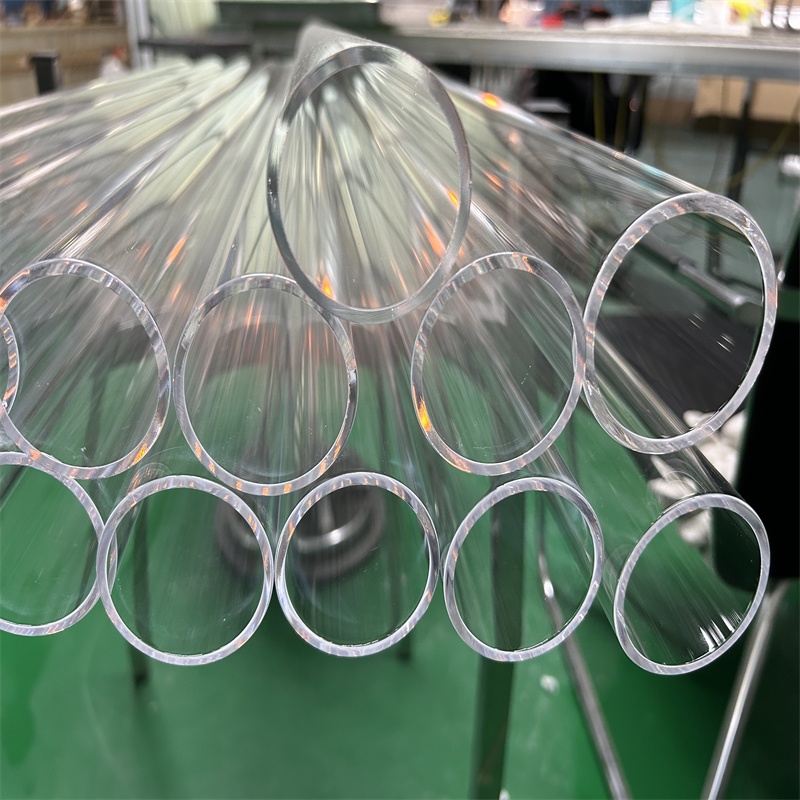

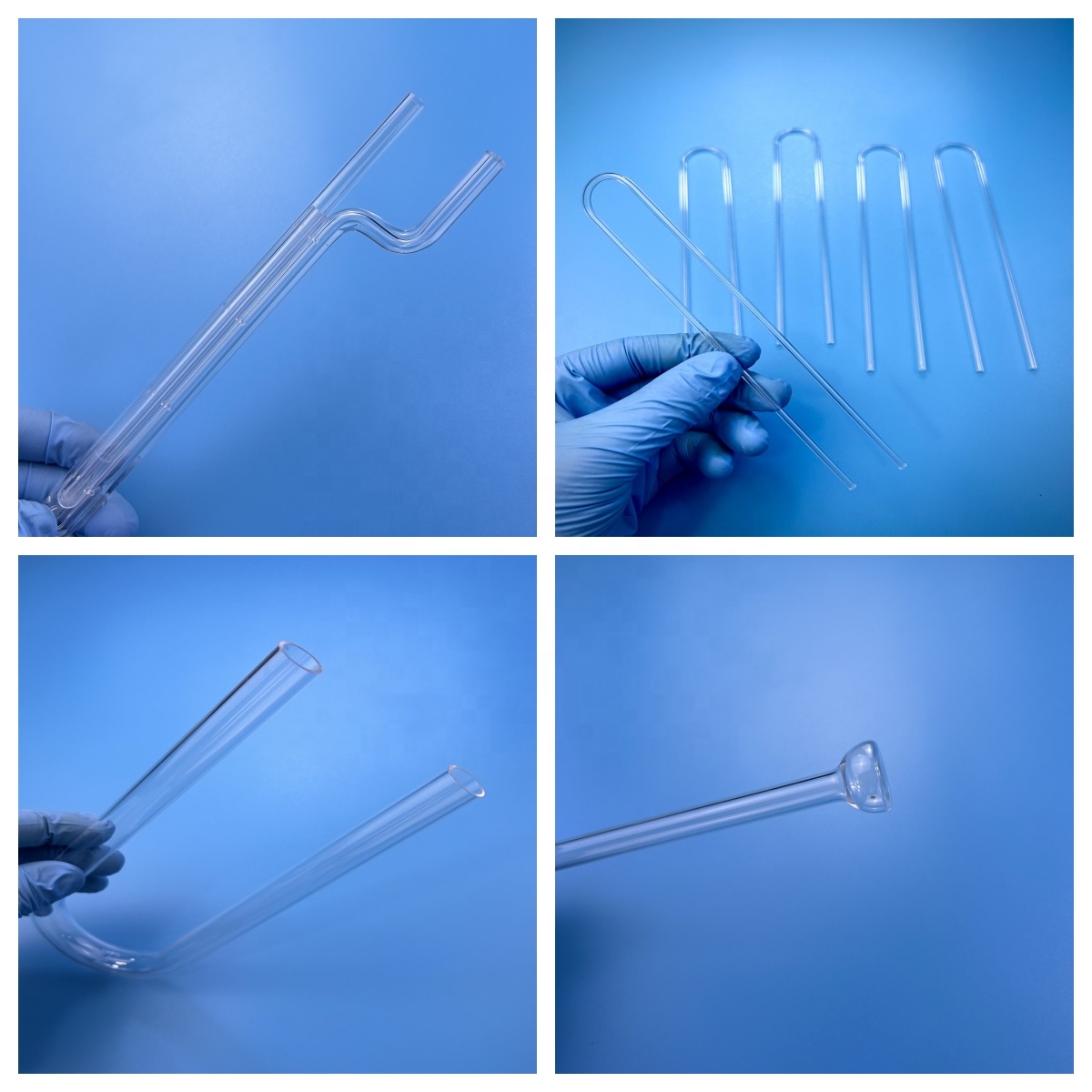

Transparent High Pressure 99.99% Pure Quartz Glass Tube Furnace Boiler Chemical Applications Corrosion Bending Moulding
Product Description
Key attributes
Quartz Performance
Quartz tube instrument is a special industrial technology glass made of silica, which is a very good basic material. Quartz glass has a series of excellent physical and chemical properties for electric fire barrels, electric baking stoves, electric heaters, and heating.
| Type | Clear Quartz Pipe |
| Application | Semiconductor, optical, Photovoltaic, Chemical pipeline |
| Outside Diameter | 1mm-600mm |
Advantage
Chemical properties: Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material.
Thermal Properties: The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of the ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
High light transmittance
In the entire spectrum of ultraviolet to infrared wavelengths have good light transmission, visible light transmission rate of 93% or more in the ultraviolet spectrum region.
Strong plasticity
Quartz glass can be processed at its softening temperature into a variety of shapes, so we can customise the product according to your drawings.
| Place of Origin | Jiangsu, China |
| Brand Name | GT Quartz |
| Color | Clear Transparent |
| Surface Treatment | Polished |
| Shape | Go both ways quartz tube |
| Ozone Content | Ozone Free |
| Processing Service | Bending, Welding, Punching, polishing |
| Material | SIO2 |
| SIO2 | 99.99% |
| Density | 2.2g/cm3 |
| Melting point | 1732℃ |
| Working temperature | 1200℃ (2192°F) |
| Strain Point | 1120°C (2048°F) |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
Industry-specific attributes
APPLICATION
We can provide customized services according to your industry needs
Semiconductor etching diffusion stage
Viewing furnace cover
Infrared heater
Sterilizing lamp tube
Patio heater tube
Water tank heating lamp tube
Product descriptions from the supplier
Overview
Video Description
Specification
Notes for purchase and use
1. There are many specifications of quartz products, so we can't necessarily mark the price, so different prices for different specifications, we can only take a physical picture to buyers as a reference you say the specifications, we give you a quote.
2. For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.
Some products display
Accept customized drawings and samples:
Factory support to figure to sample custom, Quartz handicraft, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc, Semiconductor accessories, Photovoltaic furnace tubes.
Product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.
Specializing in the production of semiconductor quartz square cylinder, High purity quartz cleaning tank, Large bore quartz tube.
Guitu Quartz Glass Tube - WHY CHOOSE US
We are a manufacturer of Transparent Quartz Tube Furnace.
Size&design: Accept customize according to different diameter, thickness, length or sending your drawing.
Advantage of Quartz Tube Furnace:
- 1. High purity: SiO₂ > 99.99%.
- 2. Operating Temperature: 1200℃; Soften Temperature: 1730℃.
- 3. Good thermal stability.
- 4. Acid and alkali resistance.
- 5. High transmittance.
- 6. Excellent electrical insulator.
PACKING & SHIPPING
| Packaging Details | plastic bubble / polystyrene foam sheet / carton / wooden pallet |
Pre-shipment quality check:
Product appearance and size measurement
First layer of packaging:
Pearl cotton or bubble paper
Second layer of protection:
Foam board laminated to cargo
Outer packing:
Packing in cardboard boxes or wooden cases
Company Profile
Numerical control machine tool
Connected furnaces
Two-end flame polishing
Small lathe machining
Large size quartz tube
Secondary molding quartz tube warehouse
Quartz tube inventory warehouse
weld
Secondary forming
Lianyungang Guitu Quartz is a professional quartz glass manufacturer, the main products include:
1. Photovoltaic semiconductor industry: High purity high temperature resistant quartz tube, quartz diffusion tube, TC sleeve, quartz exhaust pipe, pipe diameter change cap, quartz condensation bottle, quartz liquid bottle, quartz door cover, quartz boat frame.
2. Large diameter transparent quartz tube: ozone-free quartz tube, UV filter quartz tube, quartz rod quartz sheet, quartz ring, quartz lead and so on.
3. Optical, laser industry for quartz viewing mirror: quartz lens, quartz prism, quartz circular viewing window, square viewing window, ultraviolet quartz lens, infrared quartz lens, sapphire window.
4. Laboratory & Chemical Quartz Ware: Quartz beaker, flask, triangle flask, spherical flask, volumetric flask, spherical cold instrument, snake cold instrument, still. High purity water horizontal still, high purity water secondary still, silicon tetrachloride rectification tower, garden bottom evaporation dish, flat bottom evaporation dish, test tube, surface dish, triangle funnel, separating funnel, etc.
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 7 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small orders. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
Q6. Can you customize quartz products based on drawings?
A: Yes, we accept custom manufacturing according to your drawings, samples, outer diameter, wall thickness, and specified dimensions.
