Featured Quartz Measuring Cylinders & High-Purity Lab Components
Direct drawing-based fabrication engineered in Donghai County, China and shipped directly to facilities across England, Scotland, Wales, and Northern Ireland under guaranteed UK delivery terms.

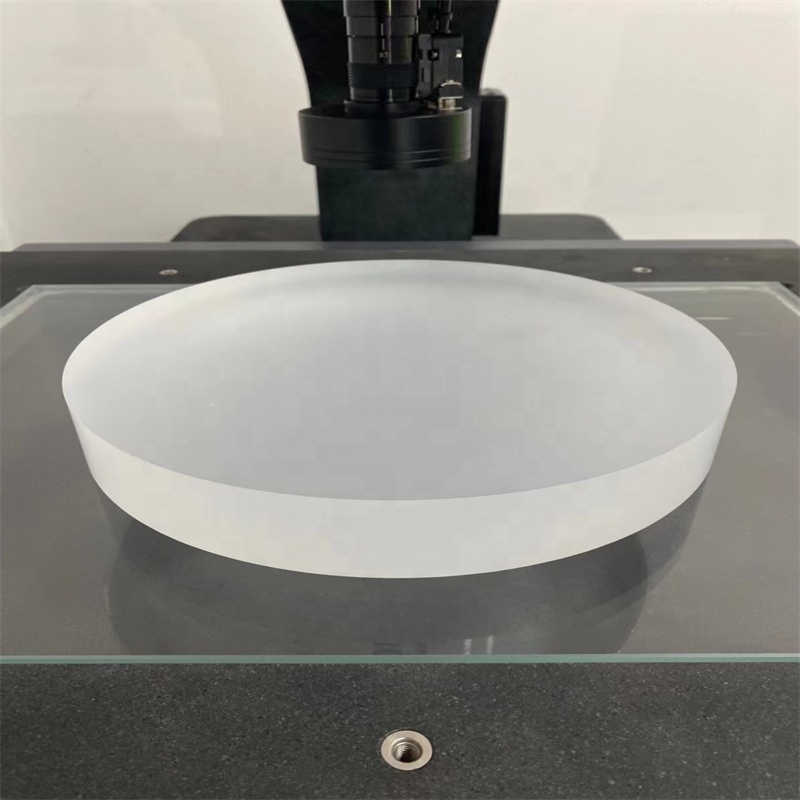

Custom Clear Fused Quartz Plate (1100°C Thermal Envelope)

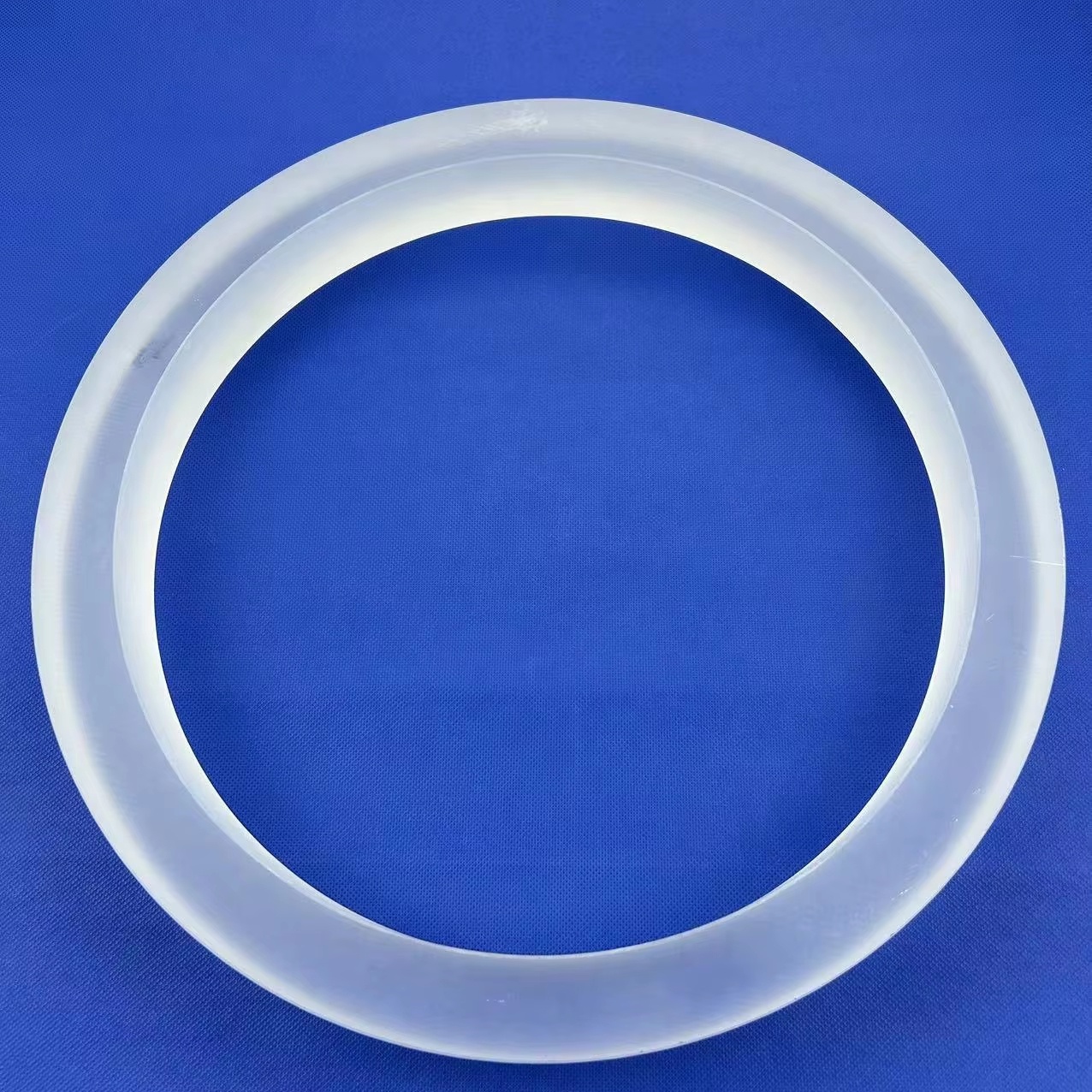

Custom Coated 99.99% Pure Quartz Precision Rings for CVD

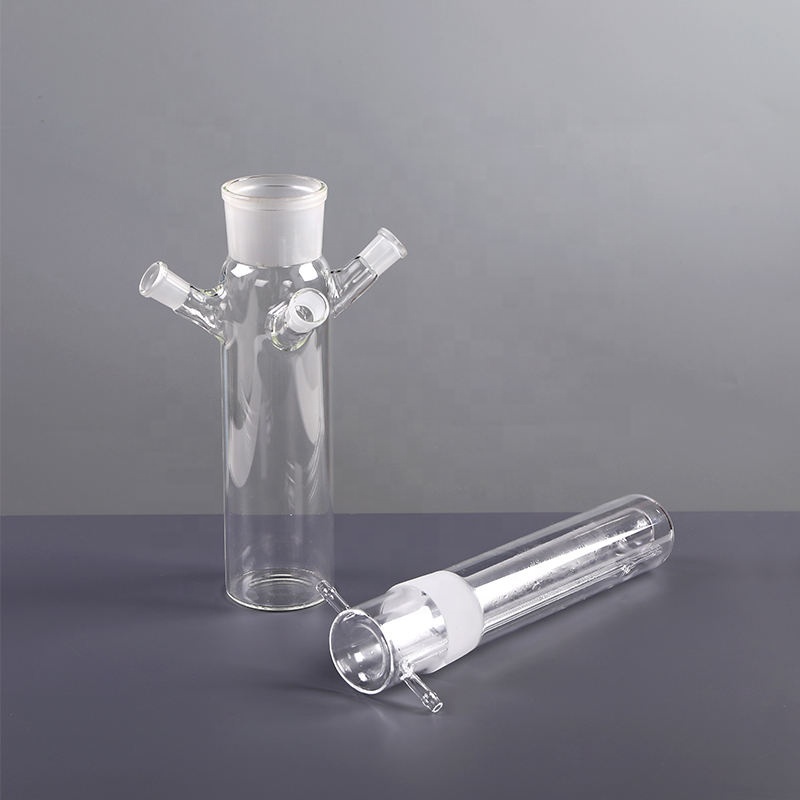

High-Purity Quartz Glass Reactor Container Vessel
Factory Custom High-Pressure 99.99% Quartz Glass Cylinder Tube
Custom Clear Cylindrical Quartz Tube for Volumetric Assemblies
High-Precision Optical Grade Transparent Quartz Lab Blank

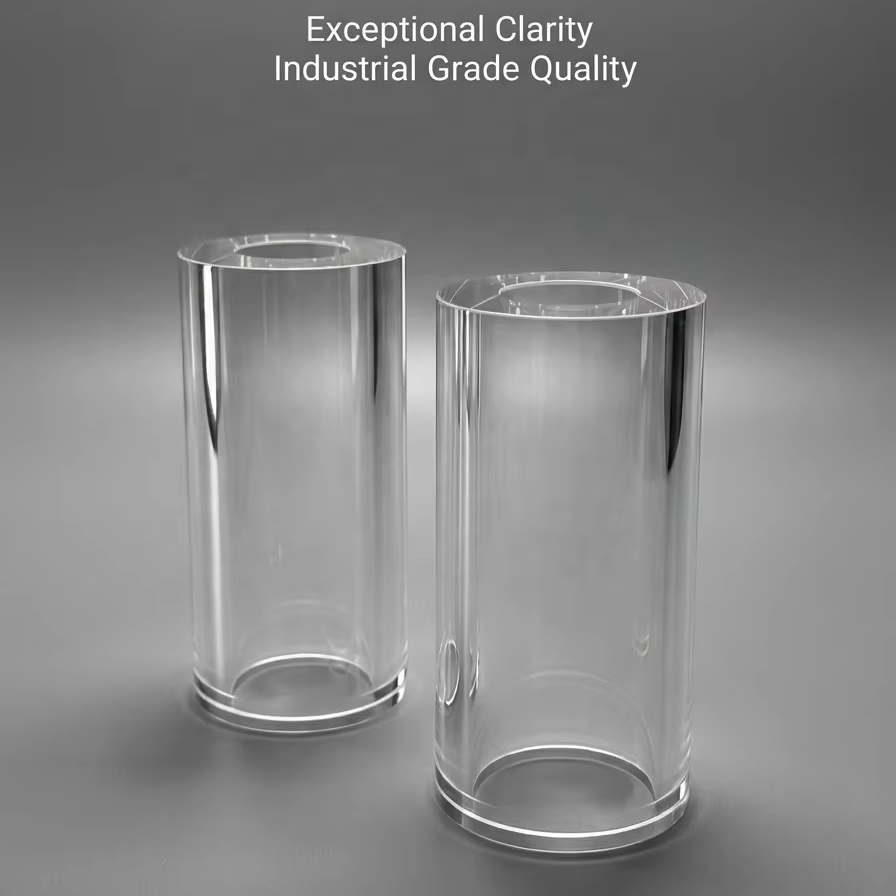

Twin-Bore Both-Ends Polished High-Purity Quartz Tube

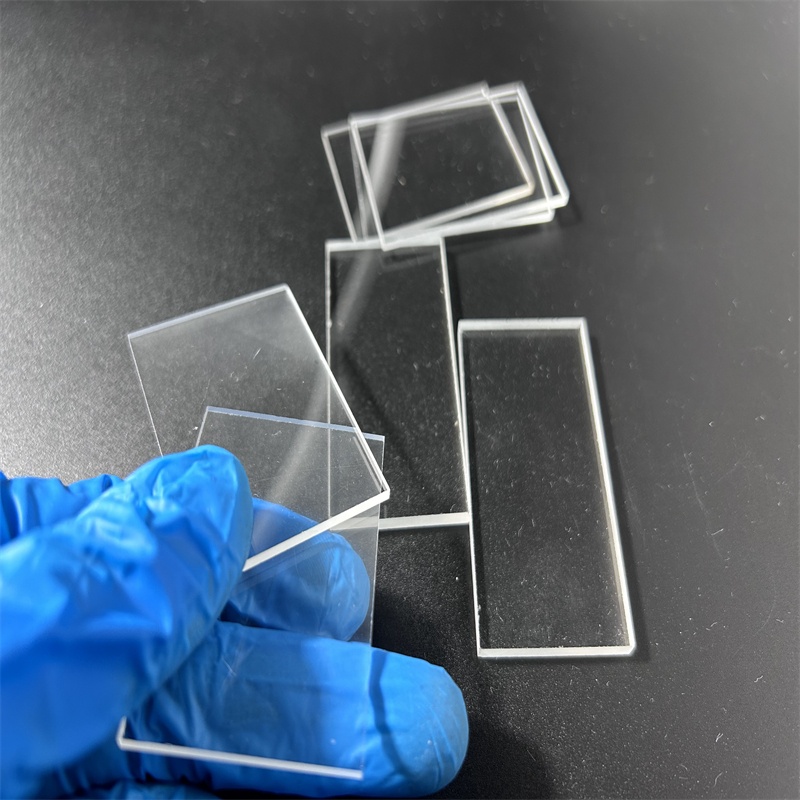

High-Temperature Transparent Fused Quartz Base Sheet
Metrological Integrity of Fused Quartz Measuring Cylinders under Extreme Thermal Gradients
Volumetric measurement within advanced United Kingdom research facilities—ranging from semiconductor wafer fabrication plants across South Wales to high-energy physics consortia in Oxfordshire—frequently reaches the physical boundaries of standard Grade 3.3 Borosilicate laboratory glass. In environments where liquids must be measured, heated, or combined with vigorous exothermic reactions, borosilicate glassware demonstrates an acute vulnerability to thermal shock and coefficient-induced volumetric expansion. Fused quartz measuring cylinders (fabricated from synthesized or natural crystalline quartz refined to ≥99.99% silicon dioxide) present an ultra-stable physical alternative.
Manufactured by Lianyungang Zelvo Quartz Products Co., Ltd. from raw quartz stock refined in Donghai County—the epicenter of global quartz purification—our graduated cylinders comply rigorously with BS EN ISO 4788 standards for laboratory volumetric glassware. Because synthetic and high-purity electric-fused quartz exhibits an extraordinarily low coefficient of thermal expansion ($\alpha = 5.5 \times 10^{-7} \text{ K}^{-1}$ between 20°C and 320°C), a quartz cylinder experiences negligible volumetric distortion when dispensing superheated solutions or receiving cryogenic liquid nitrogen, ensuring that calibrated graduation readings retain true metrological accuracy regardless of transient thermal fluctuations.
Laser Calibration, Graduations, & Geometric Precision
Standard laboratory measuring cylinders rely on silkscreened borosilicate enamels that rapidly pit, dissolve, or peel away when exposed to boiling sulfuric acid, piranha solution ($\text{H}_2\text{SO}_4 + \text{H}_2\text{O}_2$), or concentrated nitric acid. Zelvo Quartz addresses this operational point of failure by deploying multi-axis UV laser micro-engraving combined with vitreous white or red contrasting ceramic matrices fused directly into the silica matrix at 1050°C. Graduations are calibrated "to contain" (TC, In) or "to deliver" (TD, Ex) referenced at the UK standard ambient metrology temperature of 20°C.
The structural geometry is engineered with a heavy hex-cut or circular flame-welded base composed of ultra-flat optical-grade quartz discs. This prevents tipping during mechanical stir cycles while eliminating structural strain at the critical cylinder-to-base weld seam through extended controlled annealing in high-capacity programmable electric lehrs.
Localized Deployment Scenarios Across the United Kingdom
Strategic supply matching the demanding requirements of British scientific hubs, cleanrooms, and high-temperature manufacturing corridors.
Golden Triangle BioPharma & Synthesis
Academic spin-outs and Tier-1 pharmaceutical leaders across Oxford, Cambridge, and London (BioCity, Stevenage Bioscience Catalyst) utilise our quartz cylinders for photochemical synthesis. Unlike borosilicate, high-purity quartz transmits deep ultraviolet wavelengths down to 190 nm, permitting photochemical reaction tracking and volumetric UV fluorometry directly within the graduated vessel.
Semiconductor Cleanrooms & Compound Wafers
Across the CSconnected Compound Semiconductor Cluster in South Wales and Silicon Glen in Scotland, process engineers require volumetric cylinders that produce zero trace alkali metal leaching (Na, K, Li < 0.1 ppm). Zelvo’s quartz cylinders withstand heated phosphoric acid for silicon nitride stripping baths and hot aqua regia without ion exchange contamination.
Nuclear Metrology & Fusion Energy
At facilities such as the Culham Centre for Fusion Energy (CCFE) and the National Nuclear Laboratory (NNL) in Sellafield, radiochemical volumetric measurements demand radiation-resistant quartz. Fused quartz avoids gamma-ray-induced browning far longer than conventional lead or borosilicate glasses, maintaining visual meniscus inspection accuracy.
Specialty Petrochemicals & Refining
Within the industrial chemical hubs of Teesside, Runcorn, and the Humber Estuary, pilot plants apply our custom heavy-wall quartz cylinders for continuous extraction units and catalytic distillation columns, where operating temperatures consistently exceed 450°C—the upper strain limit of borosilicate.
Aerospace Thermal Fluids & Turbine Testing
In aerospace test centers surrounding Bristol and the East Midlands, synthetic ester lubricants and hydraulic fluids undergo high-pressure thermal decomposition evaluations. Quartz cylinders provide direct optical and volumetric visibility into fluid degassing up to 1000°C without mechanical sagging.
Green Hydrogen Electrolyte Formulations
Supporting UK Net Zero 2050 initiatives across the Scottish Central Belt and Sheffield Clean Energy clusters, our cylinders meter concentrated KOH and advanced acidic membrane slurries without leaching silica particulates that foul expensive PEM catalysts.
Material Performance: Fused Quartz vs. Standard Borosilicate 3.3 vs. PFA
Specifying the optimal material for British standard laboratory operations requires balancing mechanical thermal limits, chemical leachability, and volumetric precision under temperature cycling:
| Property / Characteristic | Zelvo 99.99% Fused Quartz | Borosilicate Glass 3.3 | PFA / Fluoropolymer |
|---|---|---|---|
| Continuous Maximum Working Temp | 1100 °C (1300 °C Peak) | 450 °C (500 °C Peak) | 260 °C |
| Coefficient of Thermal Expansion (CTE) | 5.5 × 10⁻⁷ K⁻¹ (Ultra-low) | 33 × 10⁻⁷ K⁻¹ | 1200 × 10⁻⁷ K⁻¹ (Severe drift) |
| Thermal Shock Resistance (ΔT Water Quench) | > 1000 °C drop without crack | ~ 150 °C safe limit | Non-brittle (Deforms) |
| UV Cutoff Wavelength (Transmission Limit) | 190 nm (Deep Far-UV) | 310 nm (Opaque to UV-C) | 240 nm (Hazy / Translucent) |
| Trace Metal Impurities (Na, Fe, Al) | < 15 ppm cumulative | Alkali metal components (~4%) | Variable oligomer leaching |
| BS EN ISO 4788 Class A Compliance | Retained under thermal cycles | Distorts if heated above 250°C | Class B only (Not Class A certified) |
| Resistance to Aqua Regia & Hot Piranha | Absolute (Zero surface etching) | Gradual surface hazing | Permeable to concentrated nitric |
*Test data acquired according to ASTM C693, BS EN ISO 4788 volumetric calibration standards, and certified optical spectrophotometer transmission tests at 20°C.
Emerging Trends in UK Quartz Labware Procurement
Navigating post-Brexit supply chains, direct factory sourcing efficiencies, and stringent UK REACH chemical conformance.
Disintermediation of Catalog Markups
UK universities and contract testing labs are systematically shifting away from domestic glassware catalog re-sellers who impose 300% to 500% premiums. Partnering directly with Zelvo Quartz as an overseas primary manufacturer in Donghai delivers substantial budgetary savings while maintaining full control over custom dimensional drawings.
Frictionless DDP Customs Clearance
Following changes under the UK Trade Tariff regime, our export division coordinates Delivered Duty Paid (DDP) shipping terms directly to customer sites across England, Scotland, and Wales. We manage UK Import VAT, Customs Declarations (Commodity Code 7017 10 00 00 for fused quartz laboratory ware), and freight insurance via DHL/FedEx Express or air freight.
UK REACH & Cleanroom Batch Auditability
Every consignment destined for British cleanrooms is supplied with an unambiguous Certificate of Conformance (CoC), raw material silicon dioxide purity assays, and strict SVHC compliance under UK REACH guidelines, ensuring effortless integration into internal audit trails.
State-of-the-Art Processing in China's Crystal Capital
Operating from Donghai County, Lianyungang, Jiangsu Province, Lianyungang Zelvo Quartz Products Co., Ltd. sits at the center of the world's most sophisticated silica refining hub. With an experienced team of glass-lathe technicians, laser machining engineers, and optical metrology inspectors, we handle the full production chain from high-purity ingot selection to flame-polished volumetric finishing.
Laser Micro-Cutting & Grooving
Our workshop utilizes high-power non-contact CO₂ and femtosecond laser cutting systems capable of machining precision spouts, slotted internal baffle ports, and micro-apertures with edge tolerances controlled within ±0.05 mm without micro-cracking.
Hydrogen-Oxygen Flame Lathe Mastery
Skilled master glassblowers with more than a decade of experience hand-weld our hexagonal bases and pour spouts using ultra-clean oxyhydrogen flames, guaranteeing bubble-free junctions and uniform wall thickness down the entire length of tall cylinders.
Polariscope Residual Stress Verification
Every manufactured piece undergoes double annealing at 1215°C followed by slow cooling. Stress patterns are measured via cross-polarised light strain analyzers to guarantee that thermal shock resistance is completely uncompromised.
Frequently Asked Questions for UK Buyers
Everything British laboratory managers, university procurement teams, and industrial buyers need to know.
What is the volumetric accuracy tolerance of your quartz cylinders according to BS EN ISO 4788?
How does thermal shock resistance differ between borosilicate glass and fused quartz cylinders?
What are the minimum order quantities (MOQ) and lead times for shipping to the United Kingdom?
How do you protect fragile, tall quartz measuring cylinders against transit damage?
Can you provide custom graduation marks, hexagonal bases, or ground quartz stoppers?
Which payment terms and currencies do you support for UK corporate and academic clients?
Request a Direct Factory Quote for Custom Quartz Cylinders
Have an engineering drawing, unique volumetric specification, or high-temperature project? Our technical sales engineers review CAD files and provide feasibility feedback with formal pricing within 2 hours.
