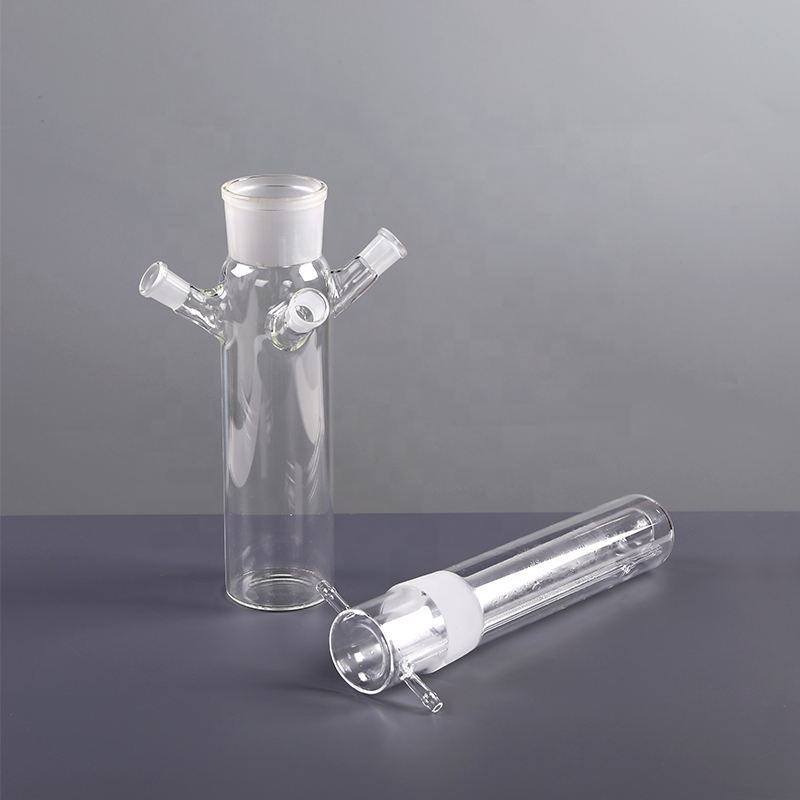

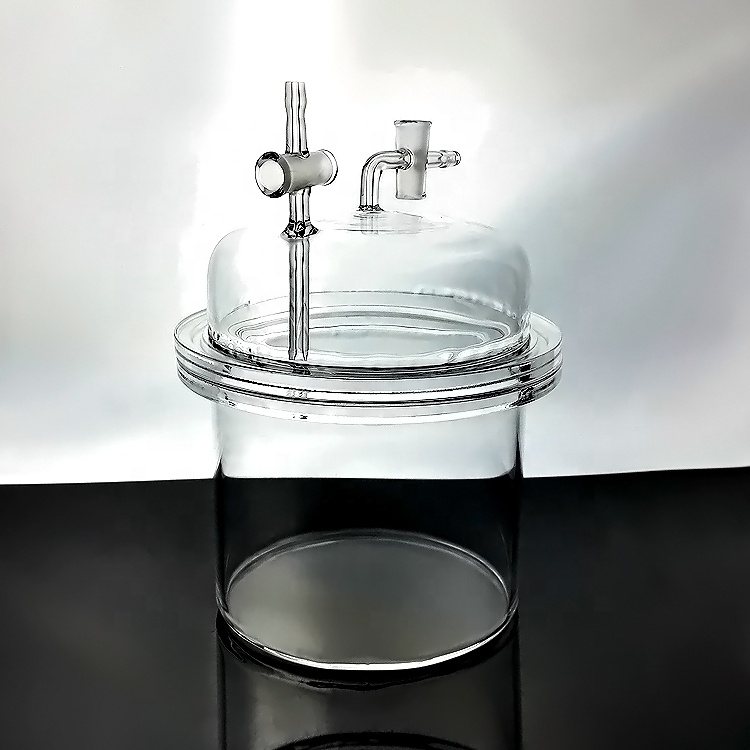

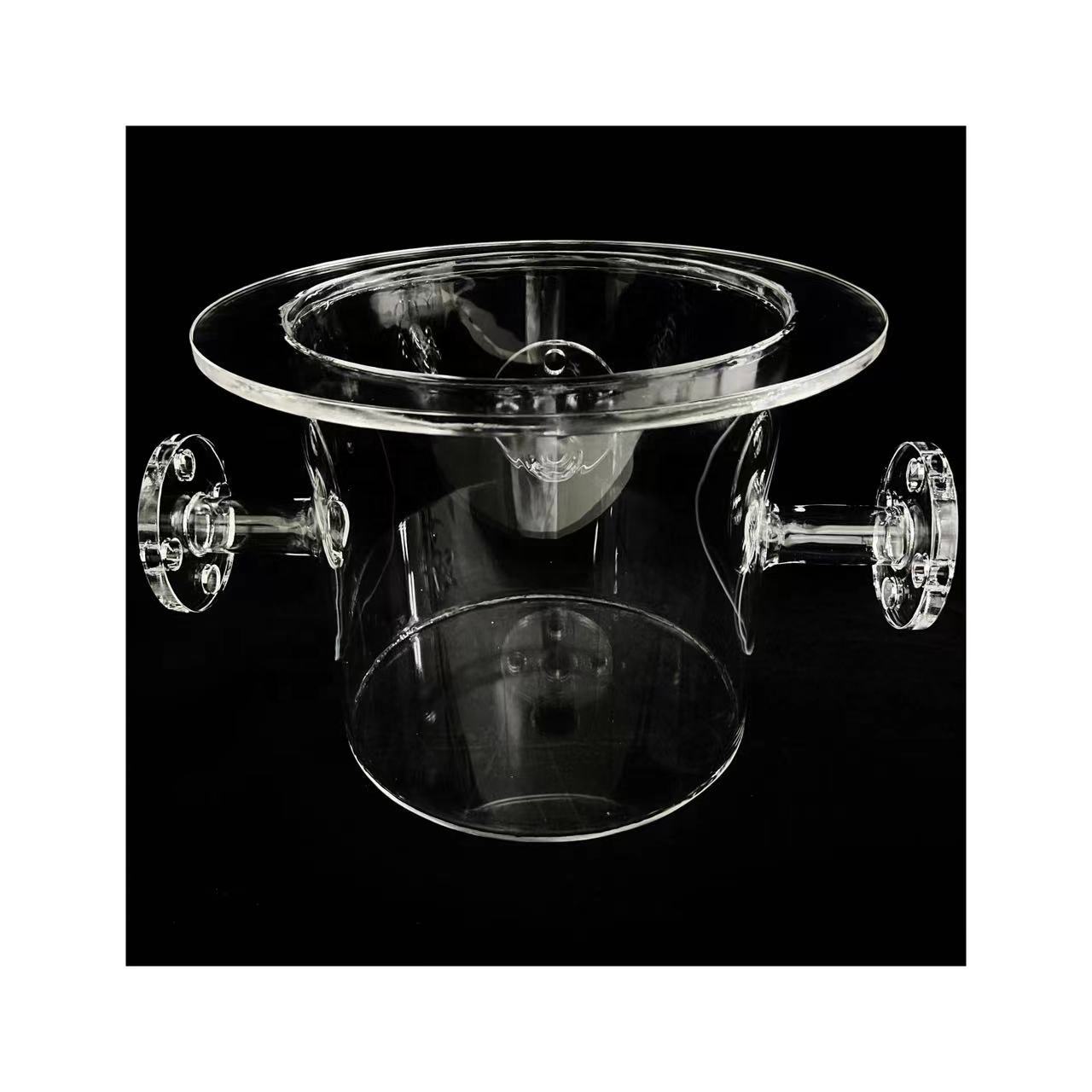

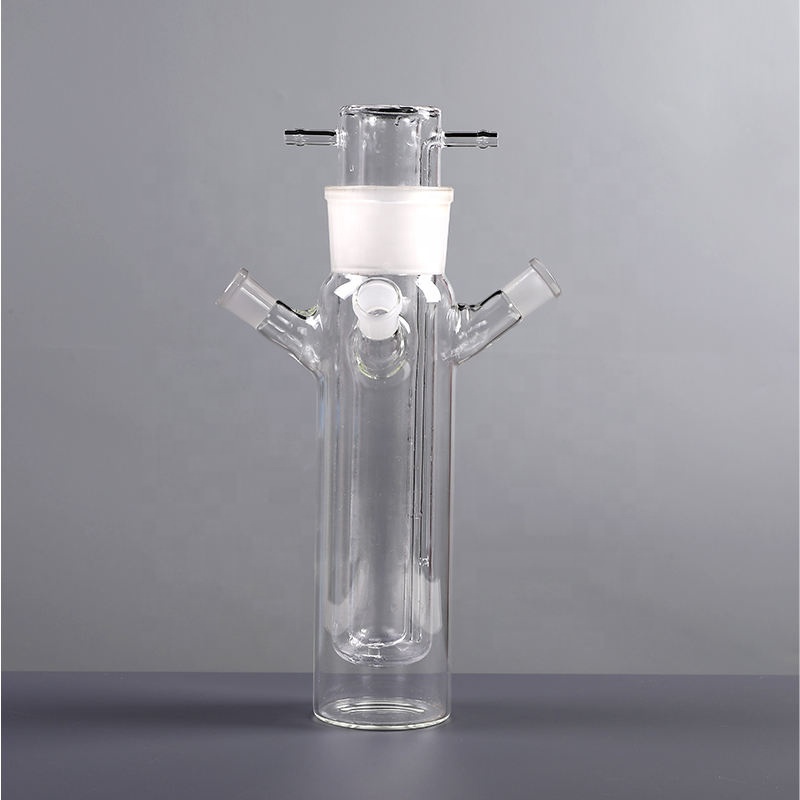

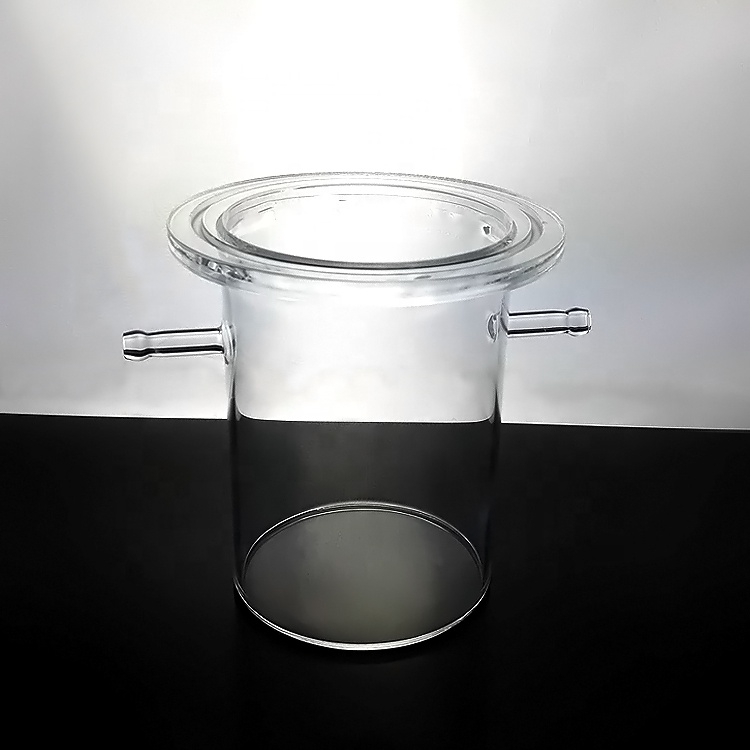

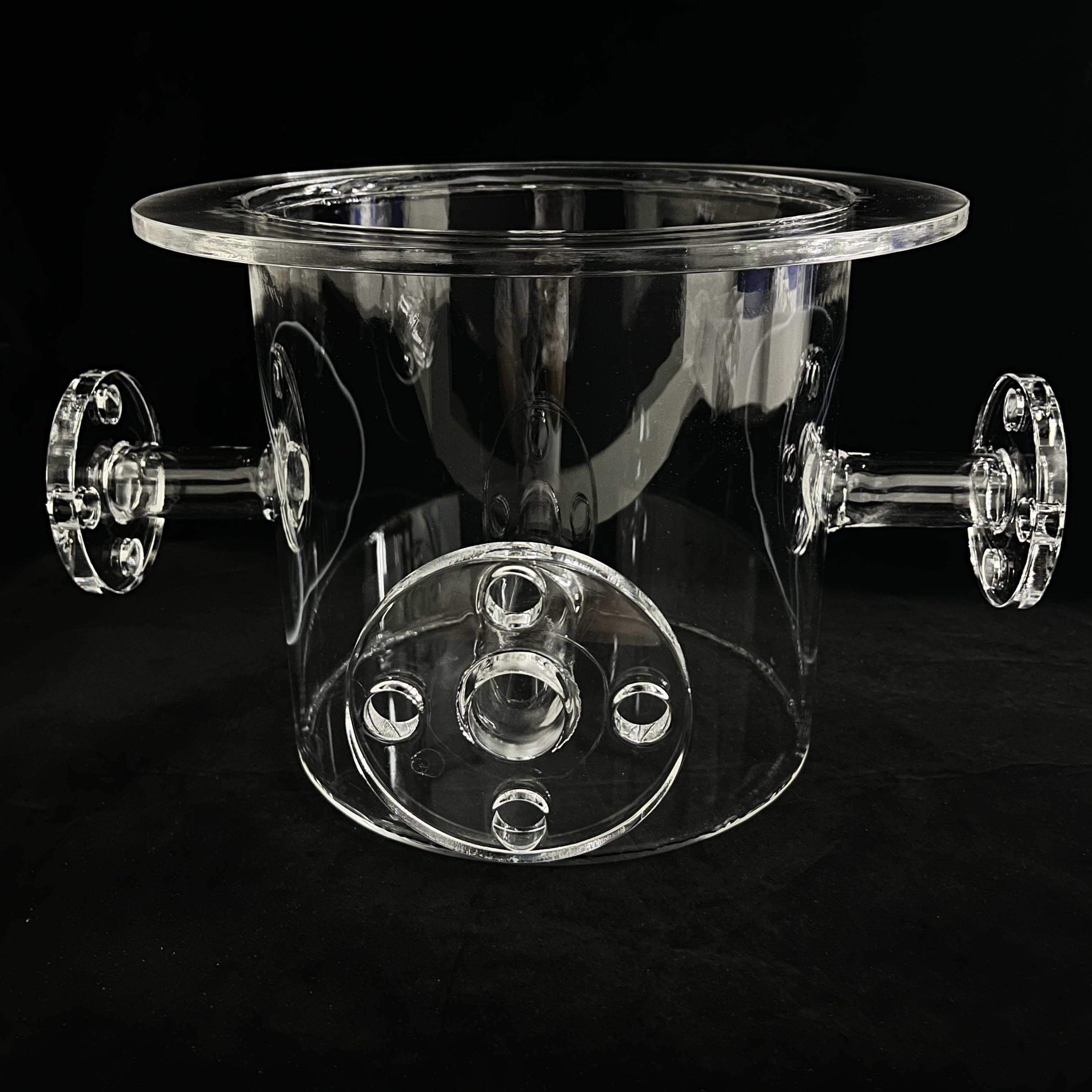

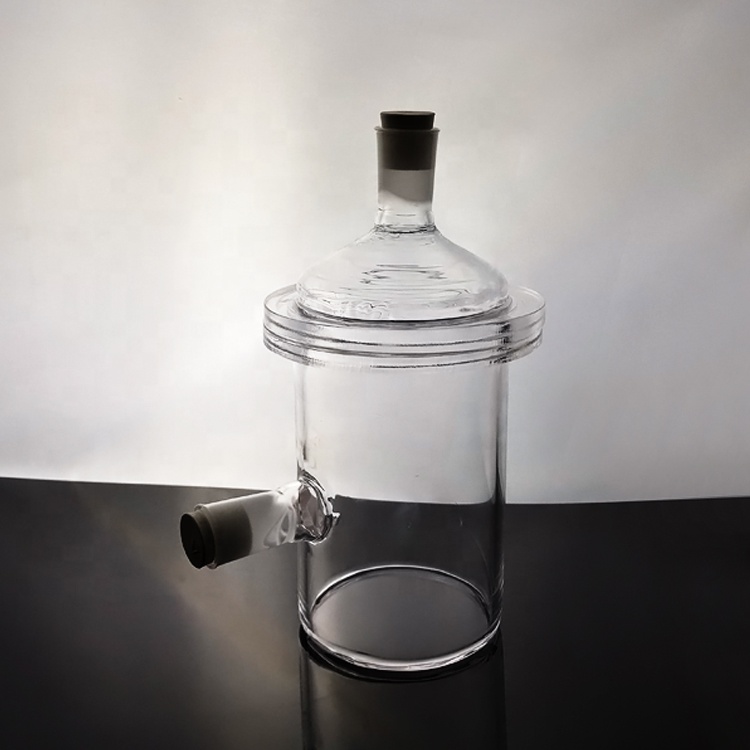

Customized High-purity Quartz Glass Reactor Container Bending Moulding Photocatalytic Degradation Internal Illumination Welding
Product Description
★
Key Attributes & Industry-Specific Attributes
| Type | Photocatalyst Reaction Quartz Tank |
|---|---|
| Application | Semiconductor, Optical, Photovoltaic, Chemical pipeline |
| Outside Diameter | 1mm - 600mm |
| Place of Origin | Jiangsu, China |
| Brand Name | GT Quartz |
| Model Number | GTq0301 |
| Product Name | Quartz Glass Tube |
| Material | SIO2 |
| Purity (SIO2) | 99.99% |
| Color | Clear Transparent |
| Surface Treatment | Polished |
| Shape | Go both ways quartz tube |
| Ozone Content | Ozone Free |
| Processing Service | Bending, Welding, Punching, Polishing |
| Density | 2.2 g/cm³ |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
ⓘ
Sample & Lead Time Information
| Samples Policy | Maximum order quantity: 10 pieces | Sample price: Pricing by size |
|---|---|
| Packaging Details | Plastic bubble / Polystyrene foam sheet / Carton / Wooden pallet |
| Quantity (pieces) | 1 - 10 | > 10 |
|---|---|---|
| Lead Time (days) | 10 | To be negotiated |
⚙
Quartz Performance
Chemical Properties: Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material.
Thermal Properties: The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of ordinary glass times. The standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
✓
Guitu Quartz Plate Characteristics & Specifications
| Brand | Guitu quartz |
|---|---|
| SIO2 | 99.99% |
| Density | 2.2 (g/cm³) |
| Degree of Hardness | 6.6 Mohs' scale |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
★
Guitu Quartz Glass Tube & Furnace Tube Advantages
We are a manufacturer of Transparent Quartz Tube Furnace.
Size & design: Accept customize according to different diameter, thickness, length or sending your drawing.
Size & design: Accept customize according to different diameter, thickness, length or sending your drawing.
Advantage of Quartz Tube Furnace:
- High purity: SiO₂ > 99.99%
- Operating Temperature: 1200°C; Soften Temperature: 1730°C
- Good thermal stability
- Acid and alkali resistance
- High transmittance
- Excellent electrical insulator
⚠
Notes for Purchase and Use
1. There are many specifications of quartz products, so we can't necessarily mark the price, so different prices for different specifications, we can only take a physical picture to buyers as a reference you say the specifications, we give you a quote.
2. For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.
⚙
Standard Dimensions & OEM Options
| Product Name | Guitu Quartz glass tube |
|---|---|
| Material | SiO₂ ≥ 99.99% |
| Color | Transparent or Opaque |
| Size |
1. Diameter: 3-600mm 2. Thickness: 0.75-10mm 3. Length: 10-3500mm OEM: All different sizes can be done according to customer's demand. |
✎
Accept Customized Drawings and Samples
Factory support to figure to sample custom: Quartz handicraft, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc., Semiconductor accessories, Photovoltaic furnace tubes.
Product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.
Specializing in the production of:
- Semiconductor quartz square cylinder
- High purity quartz cleaning tank
- Large bore quartz tube
🏢
Company Profile
Lianyungang Guitu Quartz is a professional quartz glass manufacturer, the main products include:
1. Photovoltaic semiconductor industry: High purity high temperature resistant quartz tube, quartz diffusion tube, TC sleeve, quartz exhaust pipe, pipe diameter change cap, quartz condensation bottle, quartz liquid bottle, quartz door cover, quartz boat frame.
2. Large diameter transparent quartz tube, ozone-free quartz tube, UV filter quartz tube, quartz rod quartz sheet, quartz ring, quartz lead and so on.
3. Optical, laser industry for quartz viewing mirror, quartz lens, quartz prism, quartz circular viewing window, square viewing window, ultraviolet quartz lens, infrared quartz lens, sapphire window.
4. Quartz beaker, flask, triangle flask, spherical flask, volumetric flask, spherical cold instrument, snake cold instrument, still. High purity water horizontal still, high purity water secondary still, silicon tetrachloride rectification tower, garden bottom evaporation dish, flat bottom evaporation dish, test tube, surface dish, triangle funnel, separating funnel, etc.
?
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
Q6. Can you customize products based on technical drawings?
A: Yes, our factory provides comprehensive processing services including bending, welding, punching, and polishing according to customer specifications and technical drawings.
