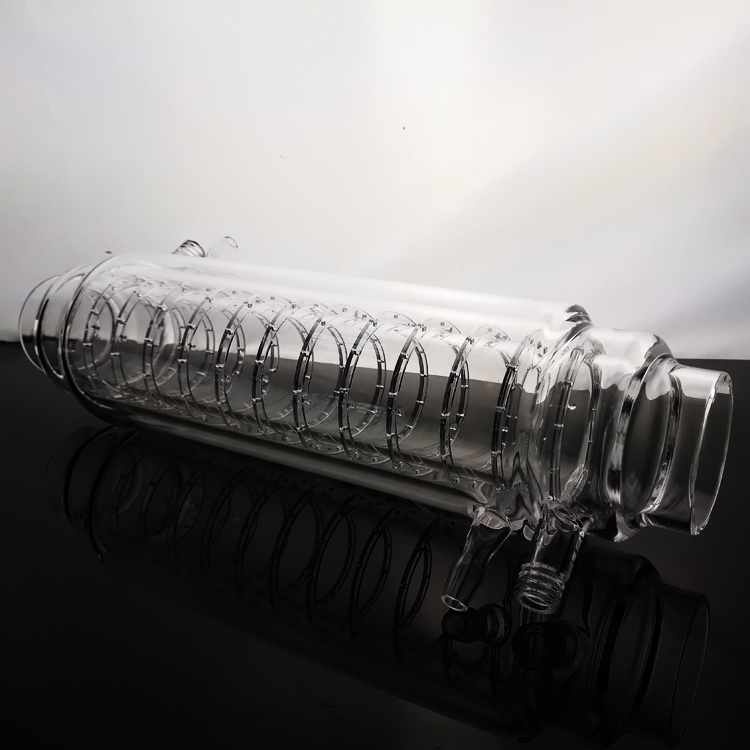

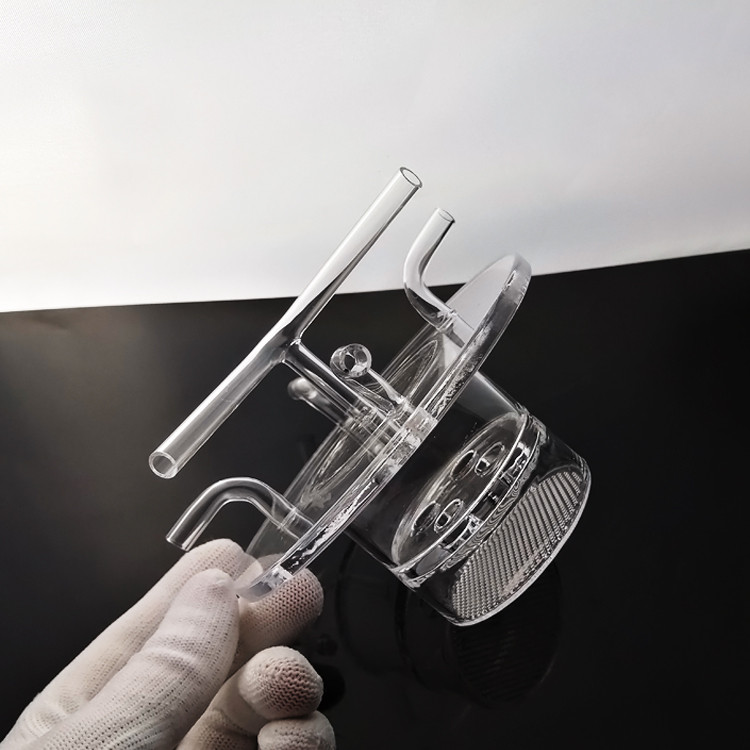

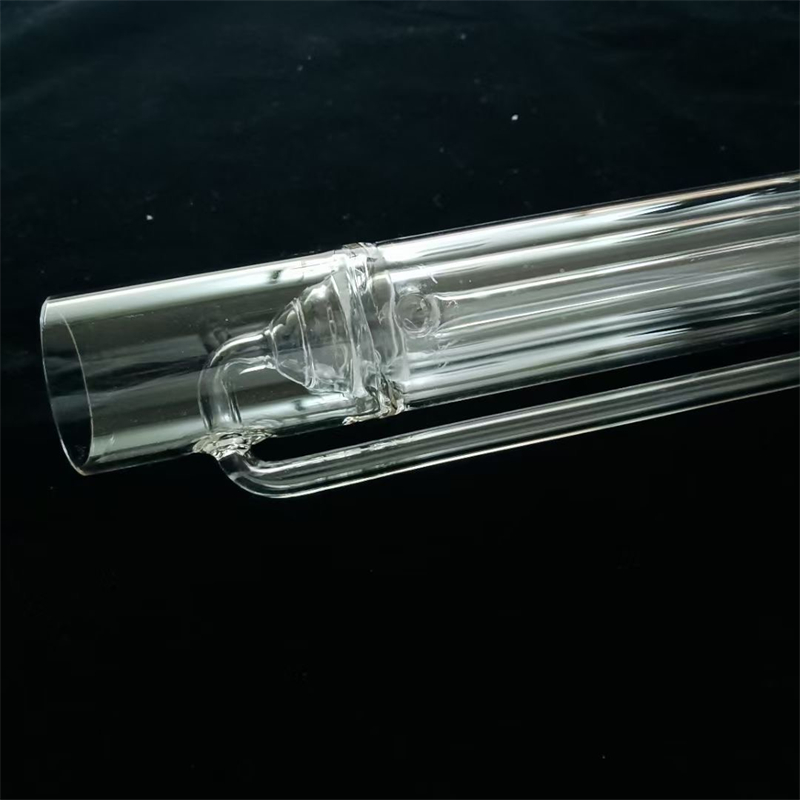

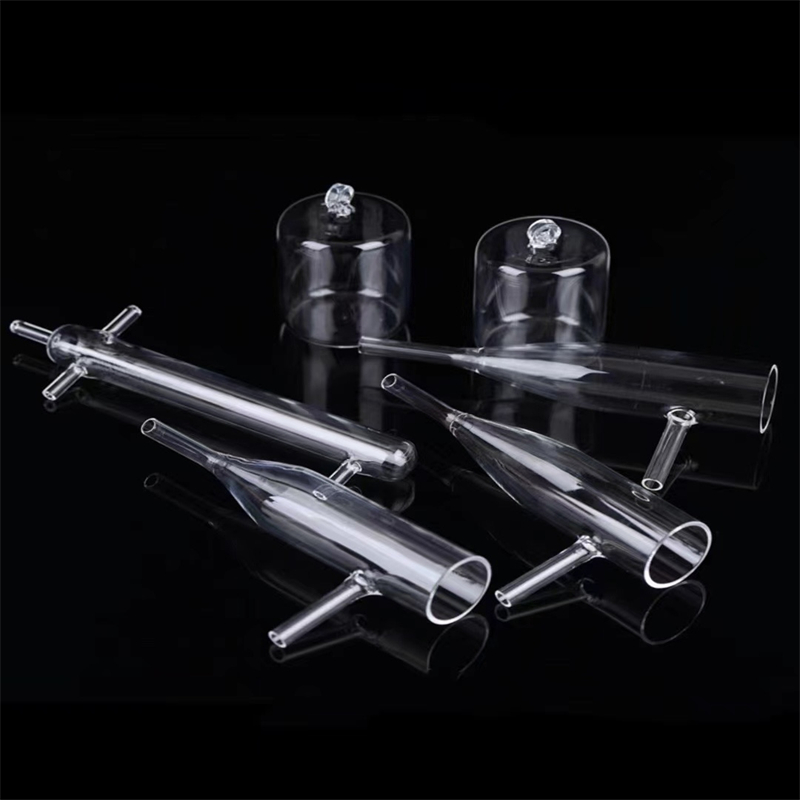

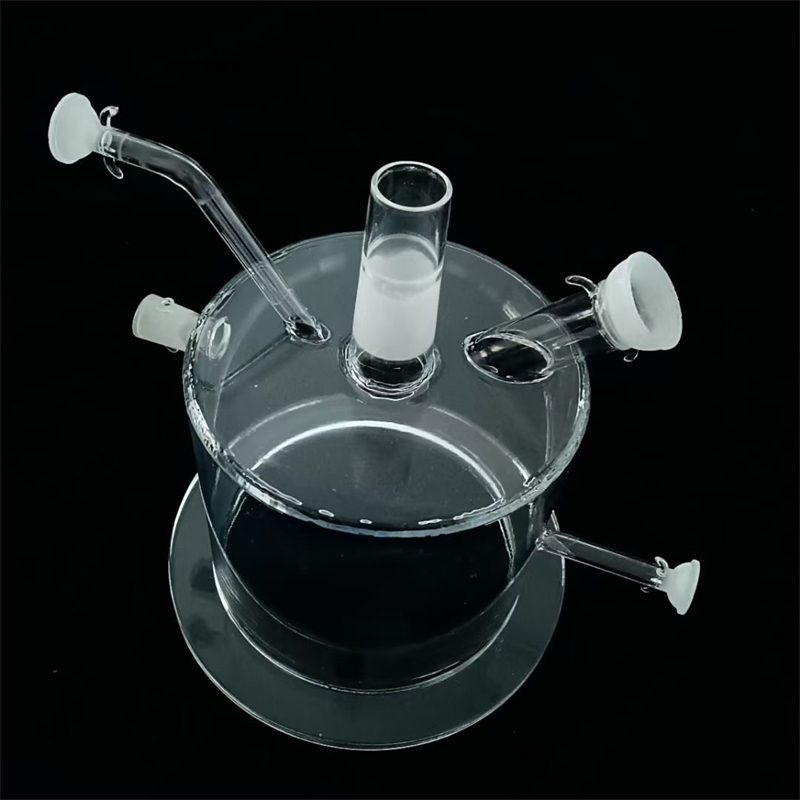

Customized High Pressure Clear Quartz Glass Tube Bending/Welding/Cutting 99.99% Pure Quartz Ozone Free Polished Surface
Product Description

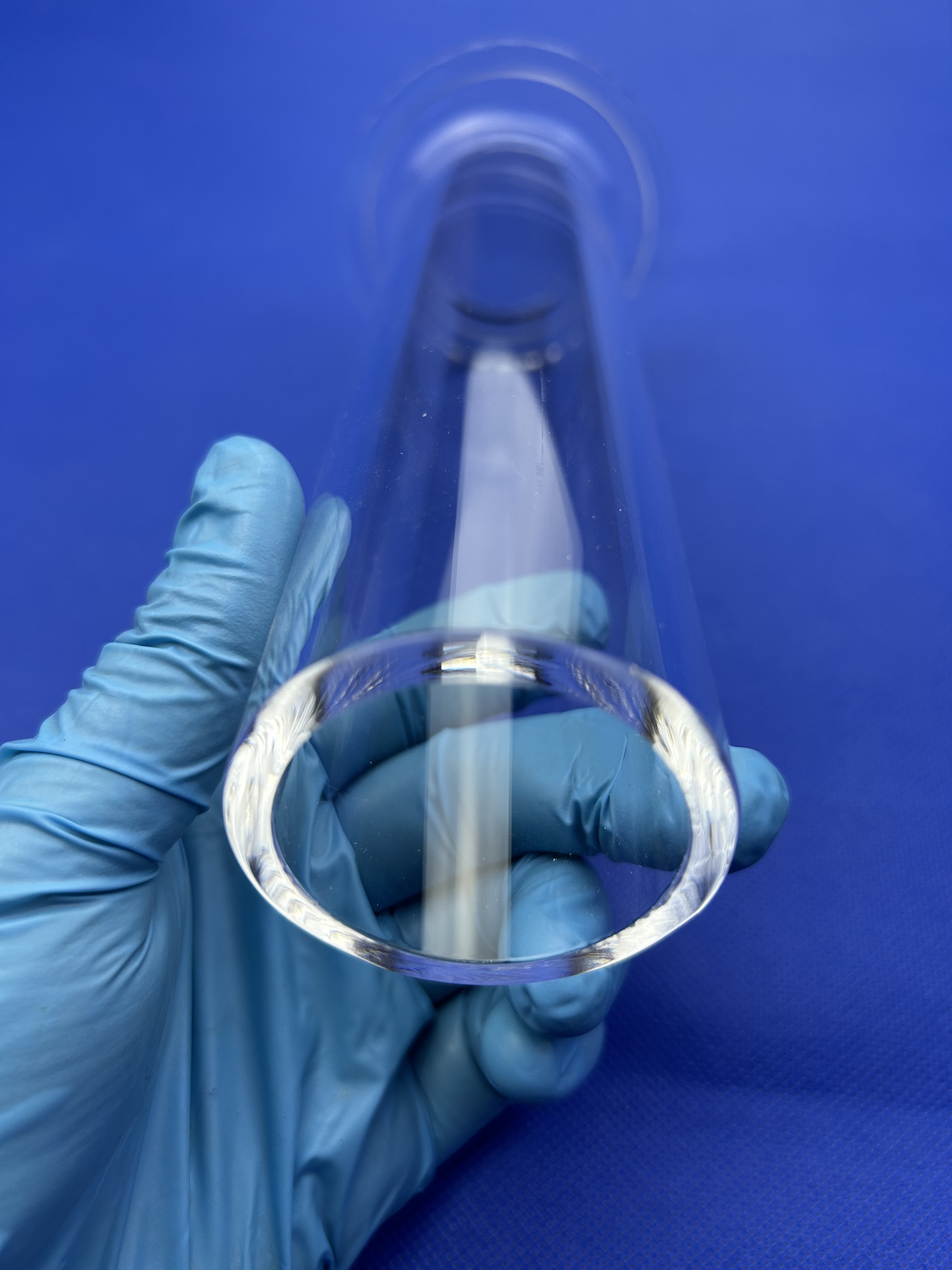

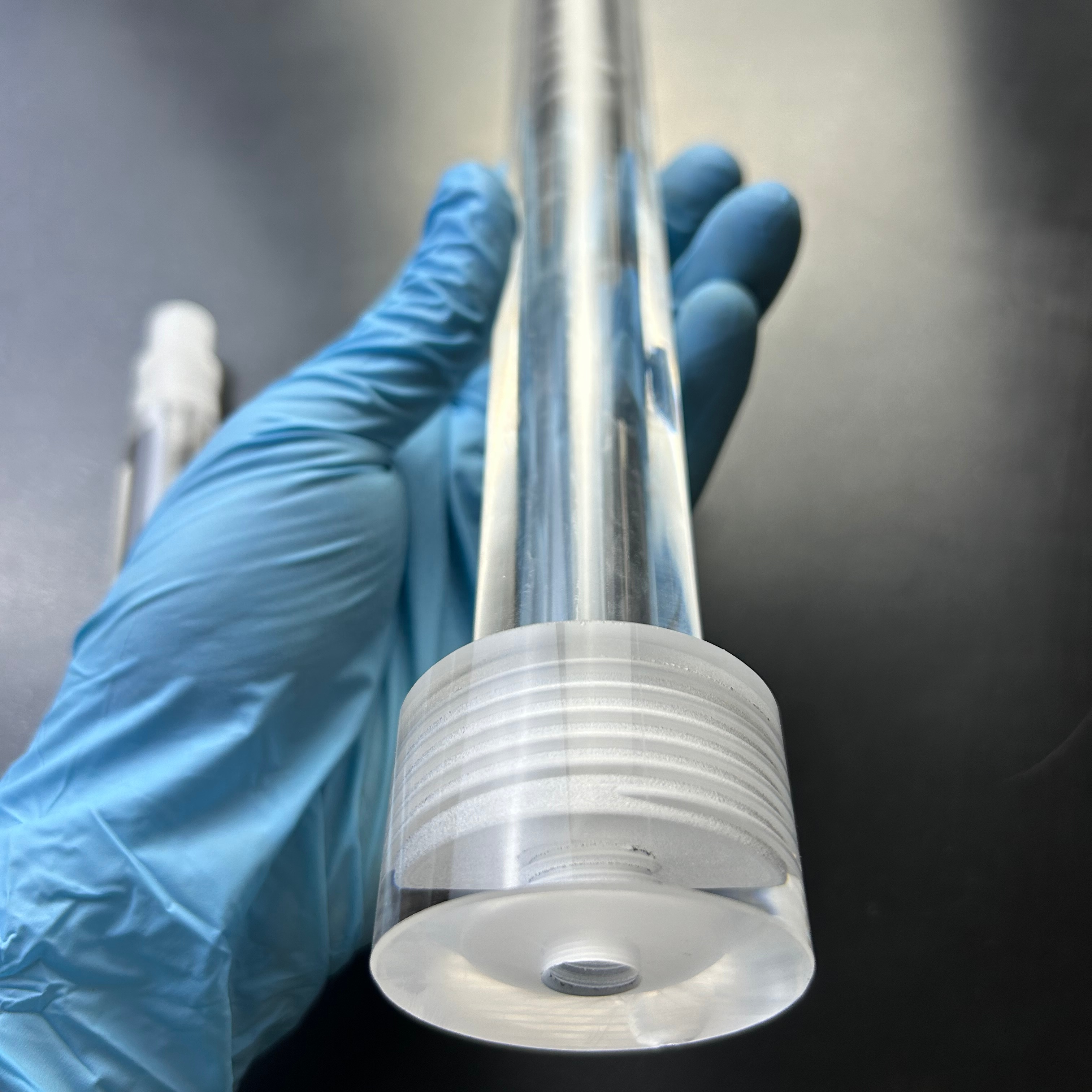

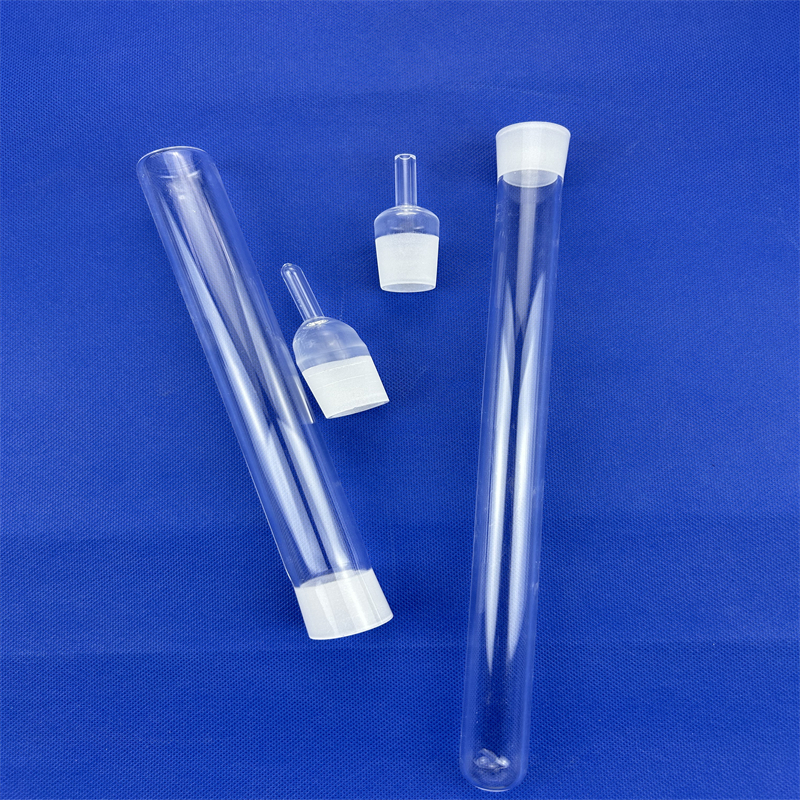

Key Attributes & Product Showcase
Industry-Specific Attributes
| Type | Clear Quartz Pipe |
| Application | Semiconductor, Optical, Photovoltaic, Chemical Pipeline |
| Outside Diameter | 1mm - 600mm |
Technical Specifications
| Product Name | Quartz Glass Tube |
| Place of Origin | Jiangsu, China |
| Brand Name | GT Quartz |
| Model Number | GTq0301 |
| Material / Purity | SiO2 ≥ 99.99% |
| Color & Clarity | Clear Transparent / Opaque available |
| Surface Treatment | Polished |
| Shape | Go both ways quartz tube |
| Ozone Content | Ozone Free |
| Processing Service | Bending, Welding, Punching, Polishing |
| Density | 2.2 g/cm³ |
| Hardness (Mohs Scale) | 6.6 |
| Working Temperature | 1100°C |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Melting Point | 1732°C |
Quartz Performance & Material Properties
Chemical Properties
Quartz glass is an acidic material. Except for hydrofluoric acid and hot phosphoric acid, it remains completely inert to any other acid, making it an exceptional acid-resistant material.
Thermal Properties
The coefficient of thermal expansion of quartz glass is extremely low—only 1/12 to 1/20 of standard glass. The standard dictates that a specimen heated to 1200°C and rapidly plunged into cold water will not fracture even after repeated cycles.
Packaging, Samples & Lead Time
| Packaging Details | Plastic bubble wrap / Polystyrene foam sheet / Carton / Wooden pallet |
| Sample Availability | Maximum order quantity: 10 pieces | Sample price: Pricing varies by size |
| Quantity (pieces) | 1 - 10 | > 10 |
|---|---|---|
| Lead Time (days) | 10 Days | To be negotiated |
Guitu Quartz Tube Advantages
Manufacturer Advantages
We are a professional manufacturer of Transparent Quartz Tube Furnaces.
Sizes and designs can be completely customized according to specified diameter, thickness, length, or customer technical drawings.
- High Purity: SiO2 > 99.99%
- High Thermal Limits: Operating Temperature: 1200°C; Softening Temperature: 1730°C
- Excellent Thermal Stability
- Corrosion Resistance: High resistance to acids and alkalis
- High Optical Transmittance
- Superior Electrical Insulator
Notes for Purchase and Use
1. Due to the wide variety of quartz product specifications, prices vary depending on specific dimensions. Images serve as visual reference; quotes are provided according to required technical parameters.
2. Dimensional factors: Larger outer diameters and thicker walls correspond to higher prices. Bulk quantity orders benefit from scalable discounts. Please provide exact specifications for detailed quotations.
Size & Dimensional Capacity
| Product Name | Guitu Quartz Glass Tube |
| Material | SiO2 ≥ 99.99% |
| Color | Transparent or Opaque |
| Available Dimensions |
• Diameter: 3mm - 600mm • Thickness: 0.75mm - 10mm • Length: 10mm - 3500mm • OEM Capability: All custom sizes manufactured per customer requirements. |
Custom Fabrication & Broad Applications
OEM Drawings & Samples Supported
Our facility supports custom manufacturing based on CAD drawings and physical samples, including quartz handicrafts, ultraviolet sterilizing lamps, UV sterilization tubes, ozone sterilization lamp shades, semiconductor accessories, and photovoltaic furnace tubes.
Primary Applications: Electric light sources, electrical heating appliances, semiconductor production, optical communications, military industry, metallurgy, building materials, chemical industry, machinery, power generation, and environmental engineering.
Specialized Manufacturing: High-purity semiconductor quartz square cylinders, high-purity quartz cleaning tanks, and large-bore quartz tubes.
Company Profile & Product Categories
Lianyungang Guitu Quartz is a professional quartz glass manufacturer offering high-precision components across four primary domains:
- Photovoltaic & Semiconductor: High-purity high-temperature quartz tubes, quartz diffusion tubes, TC sleeves, quartz exhaust pipes, reducer caps, condensation bottles, liquid bottles, door covers, and quartz boat frames.
- Tubing & Structural: Large-diameter transparent quartz tubes, ozone-free quartz tubes, UV-filter quartz tubes, quartz rods, quartz sheets, rings, and leads.
- Optics & Laser: Quartz sight glasses, quartz lenses, quartz prisms, circular & square viewing windows, ultraviolet quartz lenses, infrared quartz lenses, and sapphire windows.
- Laboratory Glassware: Beakers, boiling flasks, Erlenmeyer flasks, spherical flasks, volumetric flasks, spherical/coil condensers, distillation units, high-purity water stills, silicon tetrachloride rectification towers, evaporation dishes, test tubes, and separating funnels.
Frequently Asked Questions (FAQ)
Can I have a sample order?
Yes, we welcome sample orders to test and verify material and manufacturing quality.
What is the standard delivery time?
Standard delivery is generally within 15 days after receiving the initial deposit. Lead time for custom projects can be negotiated depending on order scale.
Do you have an MOQ limit?
We offer a low MOQ policy; 1 piece is available for sample inspection and evaluation.
How do I proceed with an order with your factory?
1. Specify your requirements, dimensions, or technical drawings.
2. We provide an exact quotation based on your specifications.
3. The customer approves samples and places the deposit for official production.
4. Fabrication commences according to schedule.
2. We provide an exact quotation based on your specifications.
3. The customer approves samples and places the deposit for official production.
4. Fabrication commences according to schedule.
How are products shipped and how long does delivery take?
Express couriers like DHL, UPS, FedEx, or TNT are optional for small parcel orders, usually taking 3-5 days. Air cargo and sea freight solutions are available for volume shipments.
Can you customize quartz products according to technical drawings?
Yes, full OEM/ODM processing services including cutting, bending, punching, welding, and high-precision polishing are performed according to user specifications.
