Featured High-Purity Fused Quartz Components
Manufactured from 99.99%–99.999% high-purity natural and synthetic silica in Donghai, Jiangsu. Fully verified for dimensional tolerance, bubble-free inner walls, and zero chemical cross-contamination under continuous 1450°C–1683°C thermal loads.

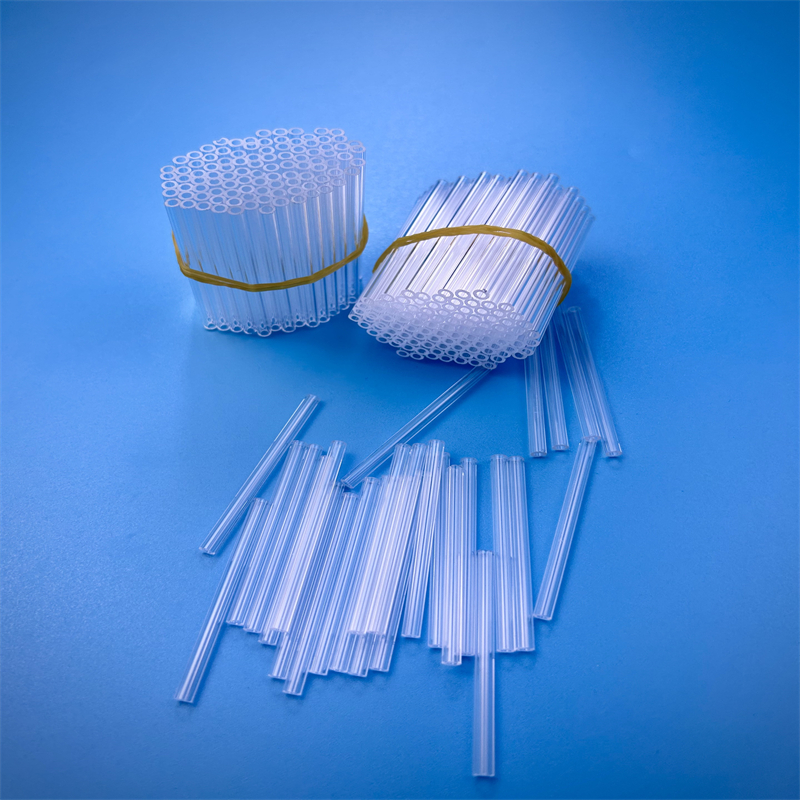

Transparent U-Bent Quartz Glass Tube Bending/Welding
Engineered for high-power infrared thermal processing, UV disinfection reactors, and exhaust recycling in furnace setups.

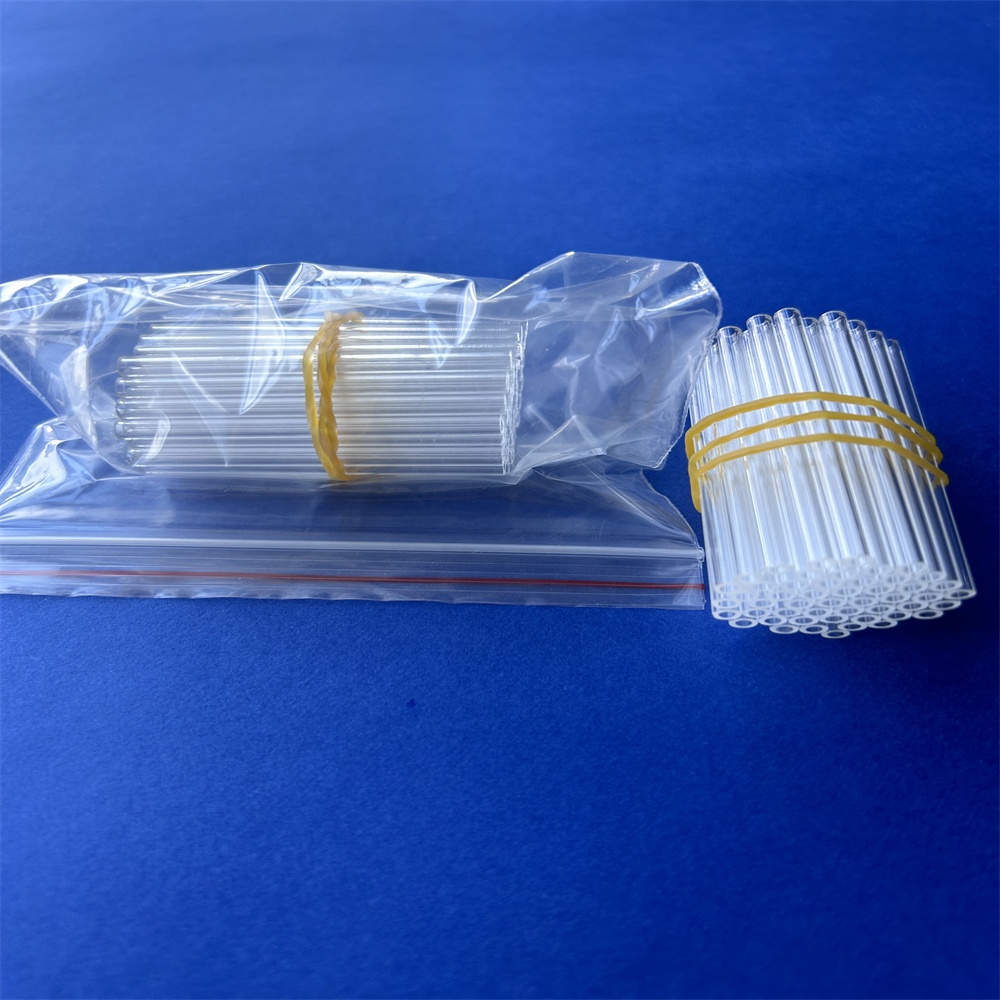

Micro Capillary Quartz Tube (0.1–20mm OD) High Temp
Critical for gas chromatography, microfluidic diagnostics, and precision fiber-optic thermocouple protection sheaths.
High-Pressure Quartz Furnace Process Tube (99.99%)
Withstands aggressive thermal pressure cycling inside LPCVD furnaces, chemical reactors, and solar diffusion systems.
Custom Coated Quartz Rings for Semiconductor & CVD
Plasma etch barrier rings and wafer clamping fixtures maintaining dimensional stability at sub-micron tolerances.
Twin-Bore Clear Quartz Tube with Ground Vacuum Flange
Integrates multiple heating filaments or sensor leads while maintaining an ultra-tight hermetic vacuum boundary.
Customized Clear High-Pressure Quartz Tube Assembly
Flame-polished quartz cylinders custom-machined for solar silicon chemical vapor deposition and pyrometry chambers.
Polished Clear Quartz Twin Tube for Furnace Heaters
Optimized for cleanroom rapid thermal annealing (RTA), epitaxial silicon processing, and wafer curing ovens.
Factory Custom Heavy-Wall Quartz Pressure Vessel
Precision annealed to eliminate internal stress, preventing thermal fracture during high-gradient crucible heating cycles.
The Role of Fused Quartz Crucibles in Next-Gen Solar Silicon Pulling
The photovoltaic industry's decisive shift toward high-efficiency N-type TOPCon (Tunnel Oxide Passivated Contact) and Heterojunction (HJT) solar cells has permanently elevated the purity standards required for quartz crucibles. In the Czochralski (CZ) monocrystalline silicon pulling process, molten polysilicon remains in continuous contact with the inner crucible wall at temperatures exceeding 1425°C for durations often surpassing 350 to 450 hours per pulling campaign.
Under these hyper-thermal, highly reactive conditions, the quartz crucible is not merely an inert container; it is an active thermodynamic interface. Any chemical impurity residing within the vitreous SiO2 matrix—particularly alkali metals (Li, Na, K), transition metals (Fe, Cu, Ni, Cr), and aluminum (Al)—dissolves directly into the silicon melt, inducing carrier lifetime degradation, crystal dislocations, and structural slip defects.
By pairing premium Donghai crystal pegmatite feedstock with inner-wall synthetic quartz powder arc melting, our solar crucibles achieve an inner-layer bubble-free density exceeding 99.95%, preventing bubble release that causes structural pinholes in large-diameter monocrystalline ingots.
| Physical & Chemical Metric | Standard Solar Grade | Zelvo N-Type Ultra Grade |
|---|---|---|
| SiO₂ Purity Level | ≥ 99.99% (4N) | ≥ 99.998% – 99.999% (4N8 - 5N) |
| Total Trace Metals (Fe, Cu, Ni) | < 5.0 ppm | ≤ 0.8 ppm (ICP-MS Certified) |
| Alkali Elements (Li, Na, K) | < 1.5 ppm | ≤ 0.25 ppm |
| Hydroxyl Group [OH⁻] Content | < 30 ppm | ≤ 10 – 15 ppm (High Viscosity) |
| Inner Bubble-Free Layer Thickness | 0.8 – 1.5 mm | 2.5 – 4.0 mm Uniform Synthetic |
| Softening Point (°C) | 1680 °C | 1725 °C (High Creep Resistance) |
| Continuous Pulling Lifecycle | 180 – 250 Hours | 350 – 480+ Hours Continuous Run |
| Applicable Ingot Diameters | 182 mm (M10) | 210 mm (G12) & Rectangular Wafers |
Precision Quartz Applications Across San Diego & Southern California
From University City cleantech incubators to Otay Mesa cross-border industrial corridors, San Diego leads North America's advanced materials, renewable energy, and nanomanufacturing transformation. Zelvo Quartz provides mission-critical high-purity thermal glassware engineered precisely for the region's technical landscape.
Sorrento Valley CleanTech & Wafer R&D
Home to cutting-edge thin-film photovoltaic research teams, solid-state battery innovators, and next-generation heterojunction pilot lines. Laboratories require custom-dimensioned fused silica reaction chambers, quartz boat carriers, and CVD furnace tubes engineered to prevent micro-particulate contamination during high-vacuum atomic layer deposition (ALD).
Torrey Pines, UCSD Nano3 & Research Labs
World-class cleanroom facilities like the UC San Diego Nano3 Center require specialized quartzware for micro-electro-mechanical systems (MEMS), photonic integrated circuit processing, and quantum computing substrate annealing. We supply custom slotted XRD substrate plates, laser-cut quartz wafers, and ultra-high chemical purity BET sample tubes.
Otay Mesa & Cross-Border Manufacturing
The high-throughput manufacturing hub along the San Diego-Baja California mega-region demands rapid replacement parts for automated silicon thermal processing furnaces, continuous IR heating arrays, and quartz heating elements used in semiconductor packaging, medical sensor sintering, and industrial vacuum furnaces.
The Transition Toward 32”–36” Crucibles & Low-Carbon Manufacturing
California's aggressive renewable targets (SB 100) and federal clean energy incentives have catalyzed intense demand for ultra-high-efficiency PV modules. To achieve lowest Levelized Cost of Electricity (LCOE), solar ingot manufacturers are rapidly restructuring furnace architectures.
1. Scaling to 32"–36"+ Crucible Geometries
As wafer standards firmly migrate from M10 (182mm) to G12 (210mm) and ultra-large rectangular configurations, furnace crucibles must expand. Large-diameter crucibles experience substantially higher hydraulic weight from molten silicon (up to 400–600 kg charge loads), demanding unprecedented high-temperature creep strength to prevent wall deformation or bulging at 1450°C.
2. Three-Layer Crucible Structural Architecture
State-of-the-art crucibles utilize a gradient tri-layer construction: an outer natural fused quartz layer providing mechanical rigidity and thermal insulation; an intermediate composite buffer layer; and a high-purity synthetic inner lining that exhibits near-zero bubble density (< 0.03 mm) and ultra-low aluminum (< 0.1 ppm) to block silicon-silica chemical erosion.
3. Resilient Multimodal San Diego Freight Corridors
Given the delicate crystallographic fragility of precision quartz, procurement teams in Southern California require shock-damped palletization, moisture-barrier vacuum nitrogen purging, and flexible maritime routing through Port of San Diego or direct LA/Long Beach bonded transport with end-to-end DDP customs compliance.
Why Global Industry Leaders Source from Zelvo Quartz
Headquartered in Donghai County, Jiangsu—the premier silica refining epicenter of the world—Lianyungang Zelvo Quartz Products Co., Ltd. combines unmatched raw crystal supply sovereignty with decade-long mastery of fused silica glass fabrication.
Frequently Asked Questions for California Buyers
Clear, technically exhaustive answers addressing logistics, cleanroom unboxing, thermal endurance, material certifications, and custom fabrication protocols.
What exact purity levels and mineral grades do your solar quartz crucibles deliver?
How are fragile large-diameter crucibles and quartz tubes safely shipped to San Diego?
Can you fabricate custom quartz components directly from 2D/3D CAD drawings?
What are the maximum operating temperatures and devitrification limits?
What documentation and quality verification accompany each export shipment?
What are your minimum order quantities (MOQ) and commercial payment terms?
Accelerate Your Quartz Sourcing with Direct Factory Engineering
Submit your CAD drawings, temperature envelopes, or procurement bill-of-materials today. Our engineering department in Donghai provides rapid design review, feasibility assessments, and guaranteed quote turnaround within 2 hours.
