Semiconductor

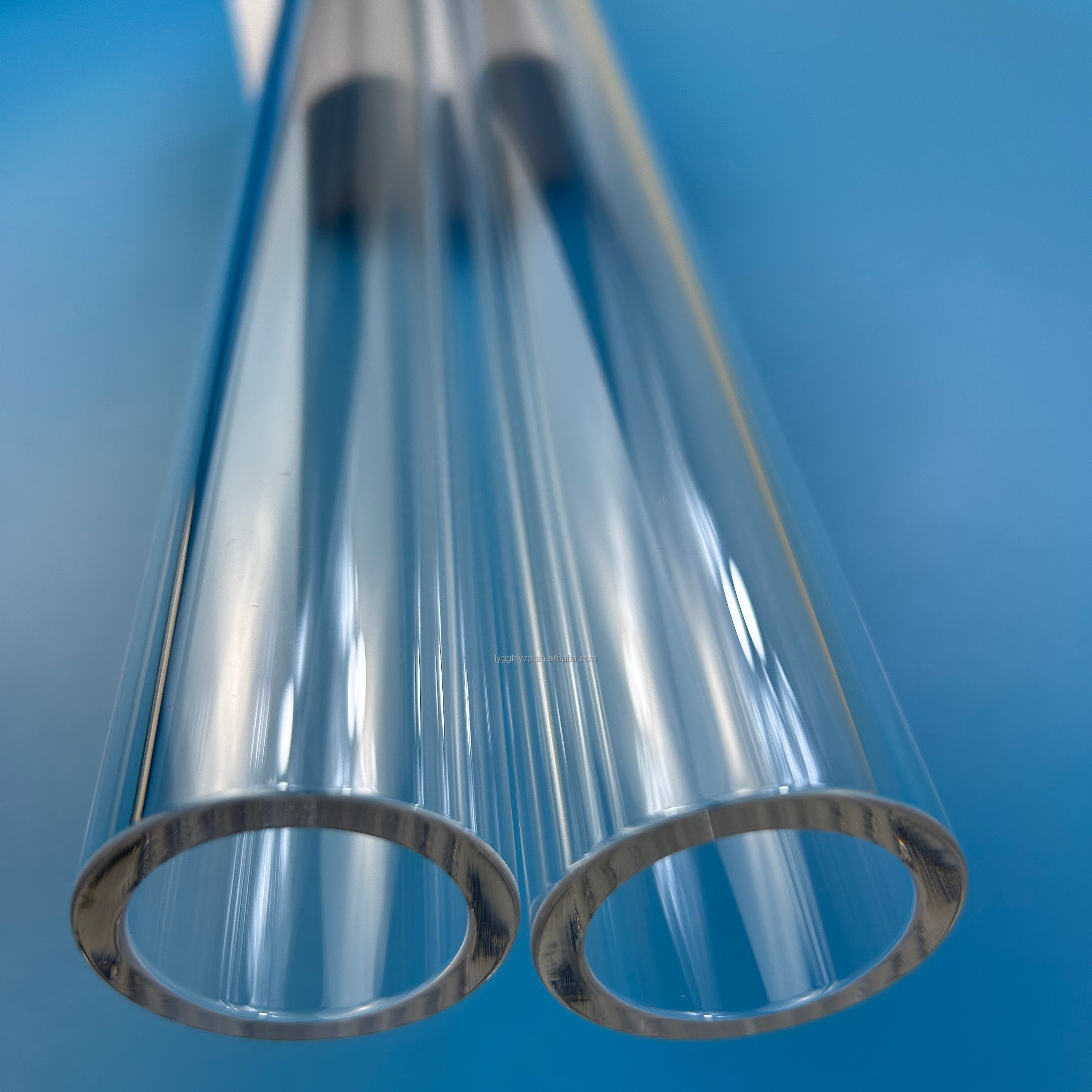

Clear Quartz Twin Tube Furnace Heater
Ozone-free high-temperature twin tube geometry engineered for vacuum sintering, CVD processes, and cleanroom metallurgy setups.
Technical SpecificationsEngineered Fused Quartz Solutions for Darkhan Industry
Fabricated from semiconductor-grade fused silica with zero thermal strain, exceptional chemical inertness against harsh acid vapors, and pristine optical transparency across deep UV to near-infrared wavelengths.
Chemisorption

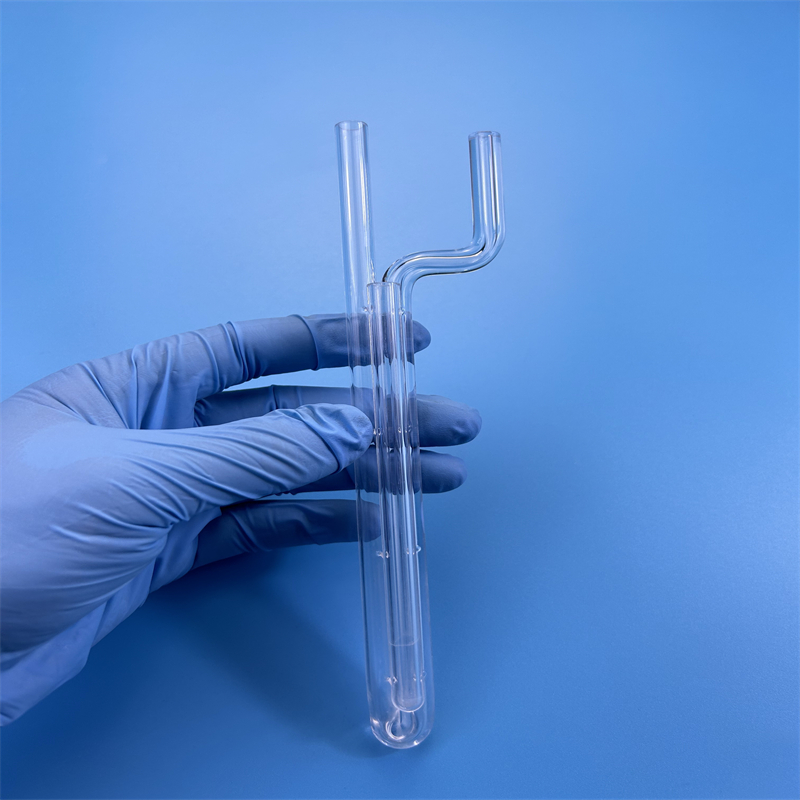

BET Test High-Pressure Quartz Tube
Precision-calibrated sample cell tubes built for Quantachrome & Micromeritics adsorption analyzers operating under differential pressures.
Technical Specifications
Flanged Series
Custom Flanged Twin Quartz Chamber
Integrated with CNC-ground, polished quartz flange rings ensuring helium-leak-tight sealing for extreme chemical vapor atmospheres.
Technical Specifications
High Pressure
Heavy-Wall High-Pressure Quartz Pipe
Thick-walled transparent fused quartz conduit designed to handle extreme baric loading, optical sight glass ports, and thermal shock.
Technical Specifications
Lab Reactor

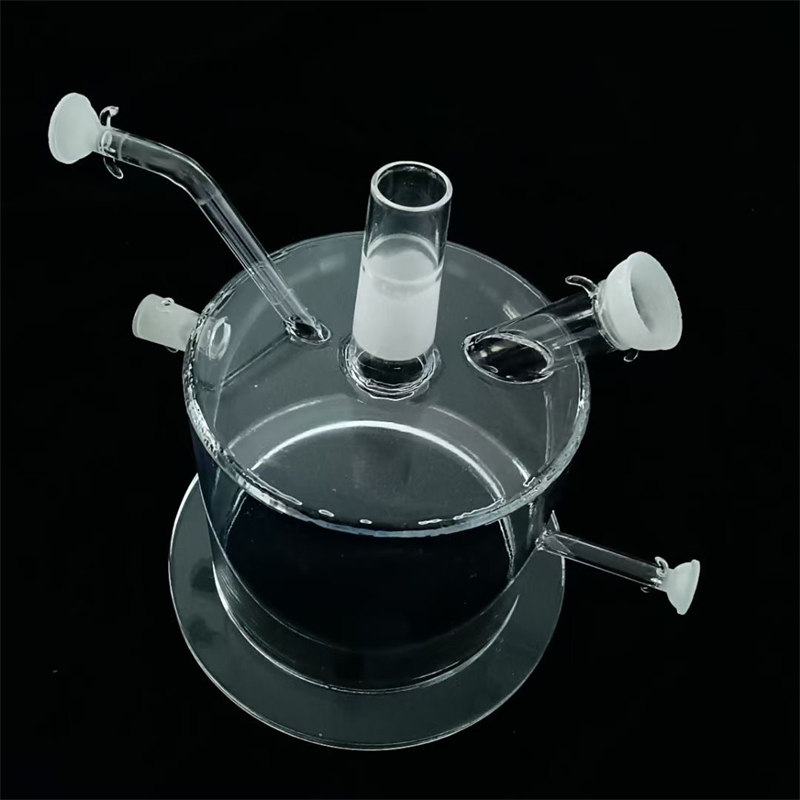

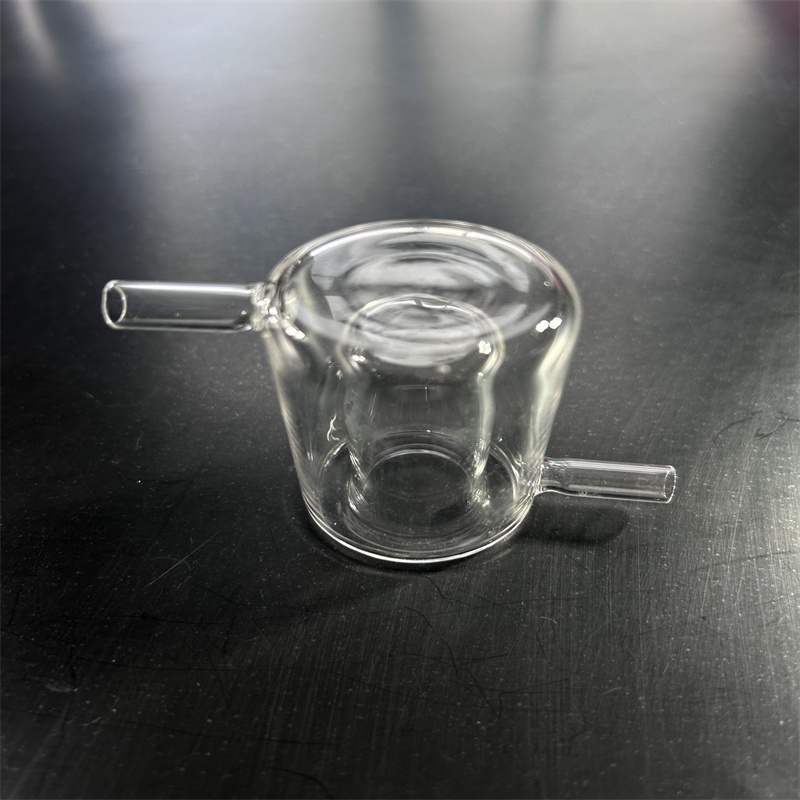

High-Temp Quartz Glass Chemical Reactor
Specialized twin-channel laboratory digestion vessel featuring inert flame-welded branches, withstands boiling nitric, sulfuric, and HCl acids.
Technical Specifications
Furnace Tube
Single-Bore Process Quartz Furnace Tube
Precision drawn tubular profiles with controlled concentricity and minimal wall variation for industrial annealing and pyrolysis lines.
Technical Specifications
Frosted Silica

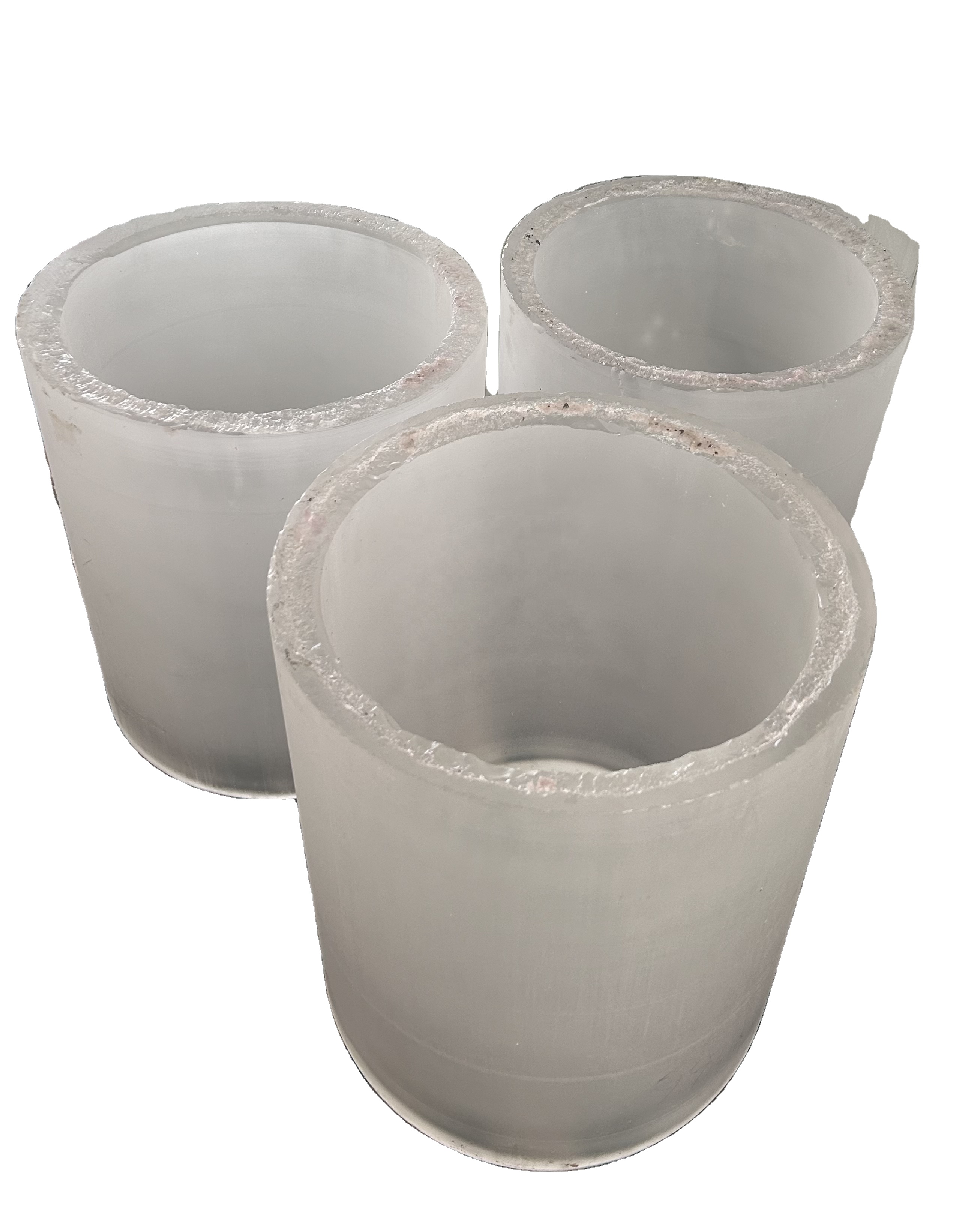

Open-Ended Frosted Quartz Cylinder
Translucent sandblasted or acid-etched outer envelope engineered for diffuse infrared heating, radiant heat shields, and muffle cores.
Technical Specifications
Optics / Sight

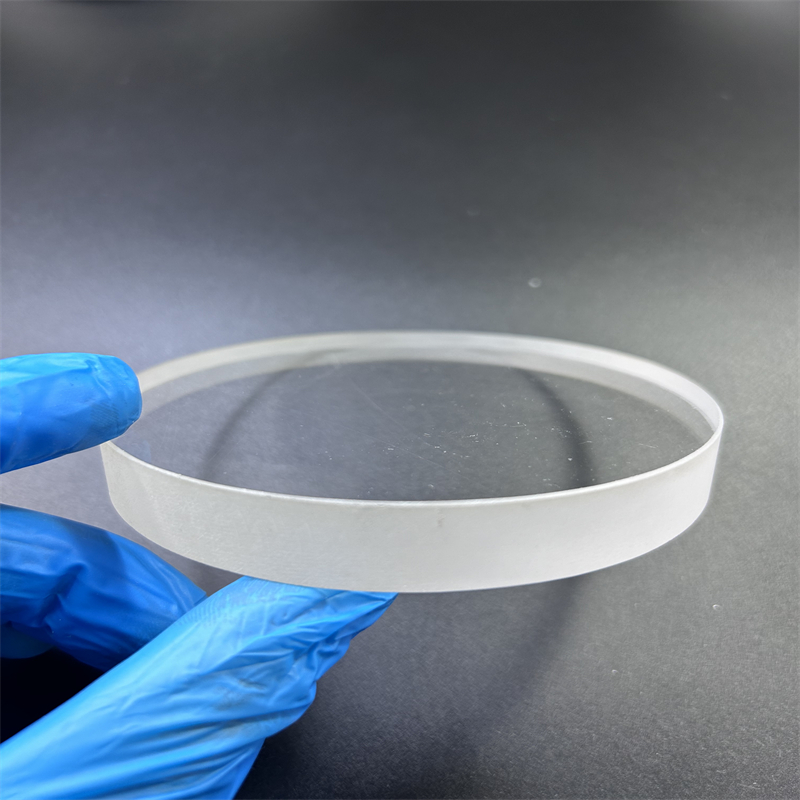

UV Fused Quartz Inspection Plate / Disc
Optically parallel furnace observation windows and sight glasses with deep UV transmission for pyrometric scanning and harsh slag monitoring.
Technical Specifications≥ 99.99%
SiO₂ Chemical Purity
1100 °C
Continuous Working Limit
5.5×10⁻⁷
Thermal Expansion Coeff. (/K)
≤ 2 Hours
Engineering Response Rate
Engineering Foundation: High-Purity Fused Silica for Severe Operational Environments
As the primary industrial hub of northern Mongolia, Darkhan (Darkhan-Uul Province) houses intensive metallurgical processing, thermal power generation, cement plants, and academic analytical facilities. Operating industrial hardware in this geographical zone necessitates materials capable of enduring not only severe process chemistries and temperatures upwards of 1100°C, but also sub-zero sub-Arctic winter conditions where seasonal temperature differentials challenge standard borosilicate glassware to its failure point.
Lianyungang Zelvo Quartz Products Co., Ltd. supplies Darkhan's engineering sectors with high-purity fused quartz manufactured from electric-arc and gas-fused natural quartz crystal grains sourced in Donghai County—globally recognized as the "Crystal Capital of China." Fused quartz (amorphous silicon dioxide, SiO₂) delivers a near-zero coefficient of thermal expansion (5.5 × 10⁻⁷ /K), rendering our tubes virtually immune to instantaneous thermal shock. A Zelvo quartz tube heated to 1100°C can be plunged immediately into ice-cold water without structural cleavage, fracturing, or micro-crack propagation.
Material Characterization: Fused Quartz vs. Standard Industrial Glassware
Standard borosilicate or aluminosilicate glasses contain substantial fluxing agents (boron oxide, sodium oxide, aluminum oxide) that depress melting temperatures to make drawing economical. However, these fluxes destroy resistance to aggressive acids and drastically lower the softening point. In contrast, Zelvo's 99.99% pure fused quartz exhibits unmatched chemical inertness:
| Physical / Chemical Property | Zelvo High-Purity Fused Quartz | Standard Borosilicate (3.3) Glass | Alumina Ceramic (Al₂O₃ 99%) |
|---|---|---|---|
| SiO₂ Content (%) | ≥ 99.99% | ≈ 81.0% | N/A (< 0.1%) |
| Continuous Max Temperature | 1100 °C | 450 °C | 1600 °C |
| Short-Term Peak Temperature | 1300 °C | 500 °C | 1750 °C |
| Softening Point | 1683 °C | 820 °C | 2050 °C (Melting) |
| Thermal Expansion (20-300°C) | 5.5 × 10⁻⁷ K⁻¹ | 33 × 10⁻⁷ K⁻¹ | 80 × 10⁻⁷ K⁻¹ |
| Resistance to Thermal Shock | Extreme (>1100°C to cold water) | Moderate (ΔT ≈ 150°C) | Moderate to Poor |
| Optical Transmission (UV-Vis-NIR) | > 90% (190 nm to 2500 nm) | Opaque below 310 nm | Completely Opaque |
| Dielectric Breakdown Strength | 25–40 kV/mm | ≈ 10 kV/mm | ≈ 15 kV/mm |
For metallurgists and test engineers in Darkhan, this structural divergence guarantees that pyrometric instrumentation, spectral inspection systems, combustion chambers, and sample preparation loops operate without devitrification, sodium leaching, or premature container failure.
Crucial Application Scenarios Across Darkhan's Core Industries
Darkhan's industrial framework presents uniquely aggressive working regimes. Zelvo supplies purpose-designed fused silica components engineered directly for localized operational matrices.
Darkhan Metallurgical Plant (DMP) Operations
In steel-smelting, rebar rolling, and scrap-processing lines, our heavy-wall quartz tubes serve as protective thermowell pyrometer sheaths, continuous molten-metal sampling pipettes, and inert gas purging spargers resisting high-velocity slag and extreme radiant fluxes.
Darkhan Thermal Power Plant Boiler Controls
Darkhan Thermal Power Plant (TETs) demands optical-grade quartz level-gauge sight glasses and combustion monitoring observation tubes capable of withstanding high-pressure superheated steam, sulfur dioxide exposure, and abrasive fly ash without surface scouring or clouding.
Mining Geological & Mineral Assay Laboratories
Analytical units testing iron ore concentrates, fluorite, and gold tailings utilize Zelvo BET chemisorption twin-tubes, combustion boats, and acid digestion ampoules. Certified zero alkali leaching protects ICP-MS and AAS assays from background silica or sodium contamination.
Cement & Building Material Production
Darkhan's rotary clinker kilns rely on our custom-ground frosted quartz envelopes and infrared emitter tubes to distribute uniform radiating heat for sensor calibration, pre-calcination thermal mapping, and moisture determination across continuous bulk product flows.
University & Technical Research Institutes
Institutes such as the Mongolian University of Science and Technology (MUST) Darkhan branch implement our laser-cut XRD slotted sample slides, CVD split-tube furnaces, and vacuum quartz ampoules for advanced material synthesis and crystallographic research.
Agricultural & Food Analytical Infrastructure
As the agricultural granary capital of Mongolia, Darkhan's food safety and grain grain inspection laboratories leverage Zelvo digestion reactors and UV transmission cuvettes for Kjeldahl nitrogen digestion and trace pesticide residue spectrophotometric analysis.
Modernization Trends in Darkhan: Green Metallurgy & Industrial Decarbonization
Darkhan is executing aggressive modernization initiatives aligned with Mongolia’s "New Recovery Policy" (Шинэ сэргэлтийн бодлого). As legacy heavy industries transition toward cleaner fuels, process automation, and reduced carbon footprints, quartz glass components have shifted from basic consumables to critical performance-enabling infrastructure.
1. Electrification & High-Efficiency Radiant Sintering
Coal-fired thermal processes are gradually modernizing through high-efficiency electric infrared heating arrays and closed-loop induction furnaces. Zelvo’s twin-tube clear and frosted quartz heaters provide high radiation density with targeted NIR emission, slashing thermal transmission losses by up to 28% compared to traditional metallic heating elements. In cold Siberian-Mongolian winter ambient temperatures (regularly dropping below -35°C), the instantaneous responsiveness of quartz heating protects equipment uptime.
2. Precision Metallurgy and Zero-Tolerance Trace Analysis
The modernization of the Darkhan Metallurgical Plant aims to boost domestic steel output while lowering impurity fractions in billet cast lines. Real-time pyrometric inspection through UV-grade quartz sight glasses enables optical emission spectrometry without opening the furnace vacuum chamber. This preserves inert argon atmospheres and drastically reduces refractory oxidation.
3. Cross-Border Supply Chain Resiliency via China-Mongolia Rail Arteries
Sourcing precision fused silica historically posed significant shipping breakage challenges for northern Mongolian buyers reliant on multi-leg European or American transit routes. Zelvo is geographically anchored in Lianyungang / Donghai, the starting node of the New Eurasian Land Bridge. Our logistics corridor coordinates direct rail-freight dispatch through the Erenhot-Zamyn-Uud border port straight to Darkhan station or fast-track road express directly to Ulaanbaatar and Darkhan industrial estates. This proximity delivers a dependable 7 to 12-day logistics window with custom export wooden-crate packaging engineered for rough road handling.
Why Mongolian Procurement Teams Partner with Zelvo Quartz
Combining primary raw crystal refinement in Donghai with advanced CNC laser micromachining to deliver enterprise reliability on every production batch.
Rapid ≤ 2-Hour Engineering Assessment
Direct communication with veteran quartz glass fabrication engineers rather than standard broker desks. Detailed feedback on dimensional tolerances, wall thickness feasibility, and thermal limits within two hours.
Flexible 1-Piece Prototyping MOQ
We eliminate high minimum order volume restrictions. Whether Darkhan plants require one bespoke twin-tube vacuum reactor for research trials or 1,000 continuous furnace tubes, our production lines accommodate your scale.
Certified 99.99% SiO₂ Quality Control
Every fabrication batch undergoes stringent visual polariscope stress-birefringence analysis, bubble and inclusion density verification, and laser micrometer wall-thickness calibration before entering our packaging line.
Laser-Precision Fabrication & Flame Blowing
Equipped with specialized 5-axis CO₂ laser drilling machines, ultrasonic glass CNC milling, precision tube lathe benders, and hydrogen-oxygen flame torch welders to execute complex custom geometry down to ±0.05 mm tolerances.
Zero-Breakage Export Packaging
Multiple layers of shock-absorbing pearl foam (EPE), vacuum-sealed moisture barrier film, and reinforced fumigated plywood cases ensure quartz tubes arrive intact despite cross-border rail shunting and rough highway logistics.
High Reorder Rate & Verified Trust
Maintains a documented 37% customer reorder rate with verified 4.9/5 satisfaction ratings across industrial clients in North America, Southeast Asia, South America, and across the Eurasian trans-border corridor.
Procurement Guidance
Frequently Asked Questions: Sourcing Quartz Glass in Darkhan
Key technical, logistic, and transactional questions frequently raised by Mongolian plant managers, laboratory directors, and procurement specialists.
What chemical purity level is guaranteed for quartz tubes exported to Darkhan?
All standard Zelvo fused quartz glass tubes, furnace liners, plates, and analytical vessels feature a minimum SiO₂ content of 99.99% (total heavy metal and alkali impurity profile < 20 ppm). For optical sight glasses, spectroscopic windows, and semiconductor-grade reactors, we supply premium optical UV-grade (JGS1) and solar/optical-grade (JGS2) fused silica exhibiting near-zero bubble/inclusion metrics and transmission levels exceeding 90% across 200–2500 nm spectra.
How does fused quartz handle Darkhan’s severe winter freezing conditions alongside high-heat industrial cycles?
Fused quartz possesses an exceptionally low thermal expansion coefficient of 5.5 × 10⁻⁷ /K, roughly 1/6th that of standard laboratory borosilicate glass. Even when process equipment is brought up rapidly from cold factory ambient conditions (-30°C in an unheated Darkhan warehouse) to 1100°C furnace working temperature, internal thermal stresses remain negligible. It will not crack, spall, or experience micro-fissuring from sharp thermal differentials.
What are the shipping routes, lead times, and customs clearance procedures from Donghai to Darkhan?
Consignments bound for Darkhan are consolidated at our facility in Donghai, Jiangsu, and dispatched via either direct international road-freight or rail transport through the major border crossing at Erenhot / Zamyn-Uud. Typical transit times range from 7 to 12 business days depending on custom rail clearing queues. We provide complete commercial documentation including Packing Lists, Commercial Invoices, Certificates of Origin (CO), Material Inspection Test Reports (MTR), and dispatch under Incoterms including DAP Darkhan, CIP Ulaanbaatar, FOB Tianjin/Qingdao, or door-to-door DDU/DDP terms.
How do you protect delicate thin-wall or high-precision twin tubes from transit damage?
We follow a multi-tier protective packing protocol developed over years of global logistics. Individual quartz tubes are wrapped in dust-free PE protective sheathings, cradled inside custom-die-cut high-density expanded polyethylene (EPE) foam cavities, and sealed within double-wall corrugated buffer boxes. For export to Darkhan, these boxes are packed into ISPM-15 compliant export plywood crates fitted with perimeter corner bumpers, internal shock dampeners, and exterior tilt/shock sensor indicators.
Can Zelvo fabricate replacement quartz tubes directly from legacy Soviet-era or custom equipment drawings?
Yes. A significant portion of equipment across Darkhan’s industrial and educational facilities operates on legacy metric standards or proprietary drawing specifications. You can supply 2D engineering PDFs, 3D CAD models (STEP, IGES, DWG), or hand-measured physical dimensions with target tolerances. Our engineering group evaluates wall clearances, thermal expansion requirements, and machining paths within 2 hours, manufacturing replacement tubes with precision laser cutting, CNC flange grooving, and torch welding.
What payment terms and transaction currencies are accepted for Mongolian industrial clients?
We support multiple flexible international payment methods including Telegraphic Transfer (T/T), Letter of Credit (L/C at sight), PayPal, and Escrow. To streamline cross-border settlement between China and Mongolia, transactions can be settled directly in US Dollars (USD), Chinese Yuan (CNY / RMB), or Euros (EUR), helping clients avoid unnecessary secondary currency exchange frictions.
Accelerate Your Project with Custom Engineered Quartz
Submit your technical drawings, operating temperature requirements, or tube dimensions. Our senior silica engineering team will review technical feasibility and deliver a comprehensive quotation within 2 hours.
